Video Intercom Indoor StationยทUser Manual
8
Name
No.
Interface
Description
B7
JIN4
Zone Detector Input Terminal 4
B8
JIN3
Zone Detector Input Terminal 3
B9
JIN2
Zone Detector Input Terminal 2
B10
JIN1
Zone Detector Input Terminal 1
4.2 Terminals and Interfaces of DS-KH6310-W/
DS-KH6310

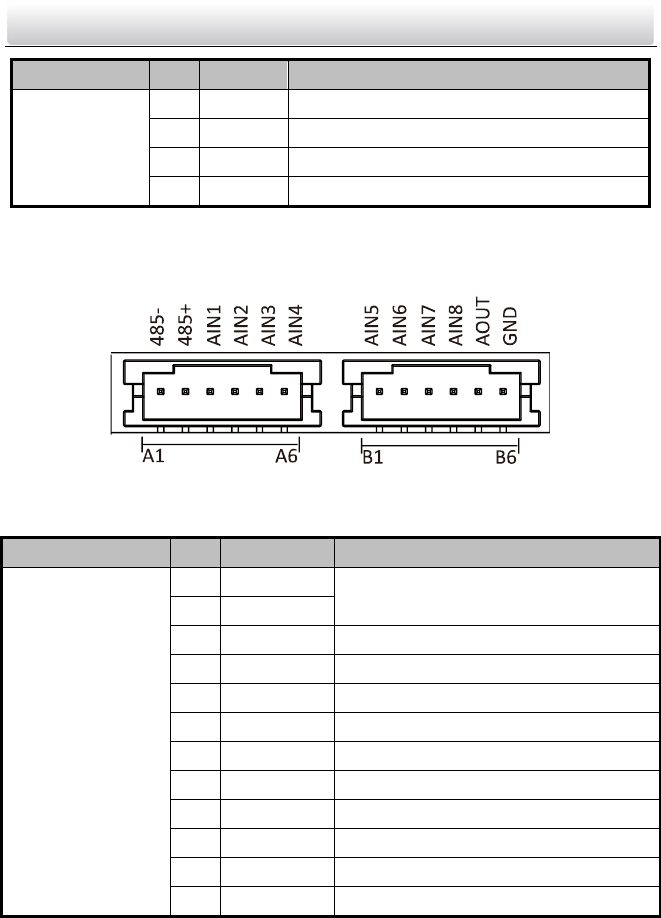

Figure 4-2 terminals of DS-KH6310-W/DS-KH6310
Table 4-2 Descriptions of Terminals and Interfaces
Name
No.
Interface
Description
Terminals
A1
RS485-
Reserved
A2
RS485+
A3
AIN1
Zone Detector Input Terminal 1
A4
AIN2
Zone Detector Input Terminal 2
A5
AIN3
Zone Detector Input Terminal 3
A6
AIN4
Zone Detector Input Terminal 4
B1
AIN5
Zone Detector Input Terminal 5
B2
AIN6
Zone Detector Input Terminal 6
B3
AIN7
Zone Detector Input Terminal 7
B4
AIN8
Zone Detector Input Terminal 8
B5
AOUT
Alarm Relay Output
B6
GND
Grounding
