Video Intercom Indoor Station·User Manual
4
2.3 Appearance of DS-KH6310-WL/DS-KH6210-L

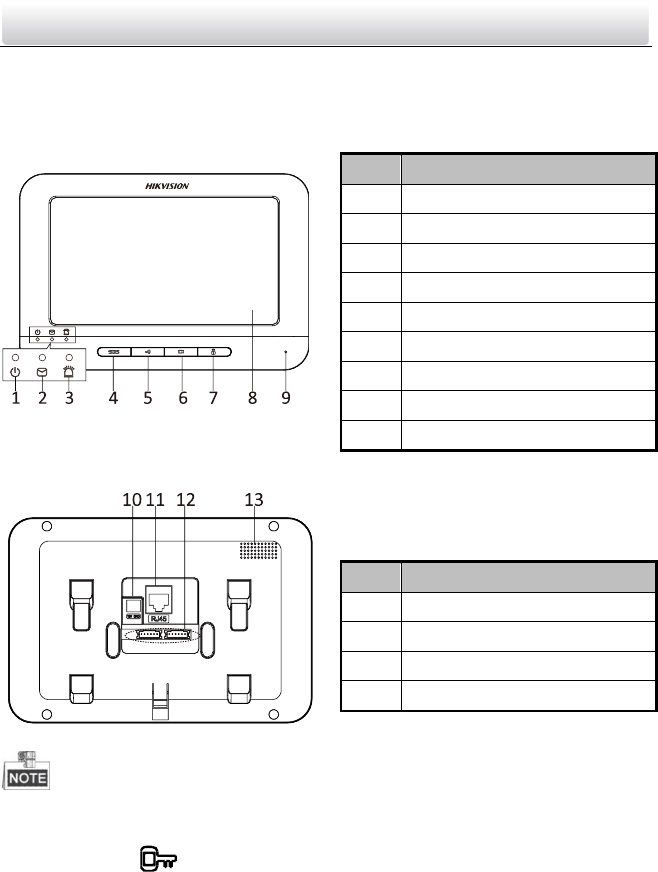

Figure 2-5 Front Panel
Table 2-5 Components Description
No.
Description
1
Power Supply Indicator
2
Information Indicator
3
Alarm Indicator
4
SOS Key
5
Unlock Key
6
Live View Key
7
Management Center Key
8
LCD Display Screen
9
Microphone
Figure 2-6 Rear Panel
Table 2-6 Components Description
No.
Description
10
Power Supply
11
Network Interface
12
Terminals
13
Loudspeaker
Hold down the SOS key to trigger a SOS alarm and upload the alarm message to the
management center (iVMS-4200 client software or the master station).
The Unlock key ( ) is valid only when does the indoor station speak with the door
station or open the live view of the door station.
For DS-KH6210-L indoor station, there are different meanings when you press or hold
down the four mechanical keys.
