Installation Guide

4.

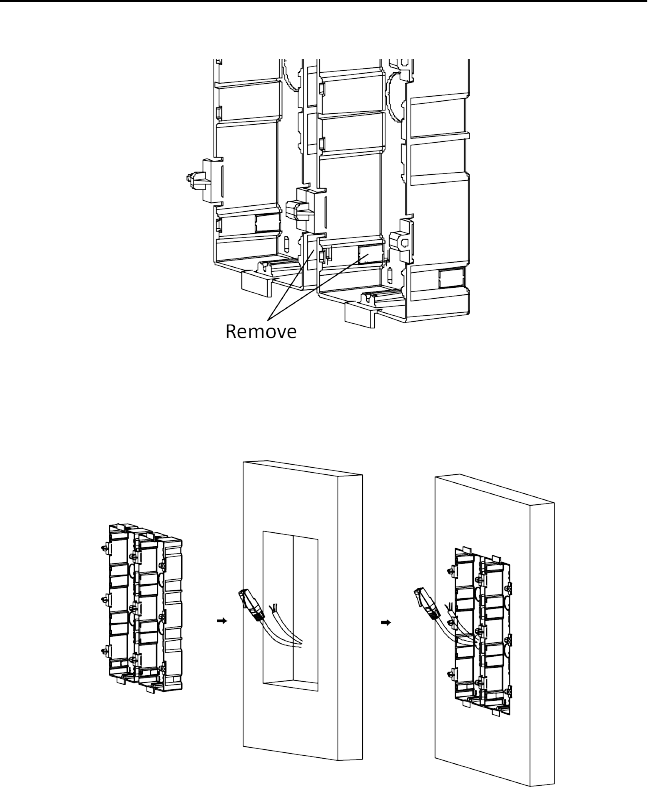

Remove the plasc sheets on the side of the gang boxes (shown as 1 and 2)
below:
Figure 3-56 Remove the Plasc Sheets
5.
Insert the gang boxes into the hole and pull out the cables through the cable
entry. Mark the screw holes' posion with a marker, and take out the gang
boxes.
Figure 3-57 Mark the Screw Holes
6.
Chisel 8 holes with drill align to marks on the wall, and insert the expansion
sleeves into the screw holes. The suggested size of hole is 6 (diameter) × 45
(depth) mm.
7.
Fix the gang boxes with 8 expansion bolts.
Door
Staon Installaon Guide
44
