Installation Guide

Steps
1.
Cave the installaon hole, and pull the cable out.The suggested dimension of
installaon hole is 321.8 (W) × 315 (H) × 45.5 (D) mm. The suggested length of
cables le outside is 270 mm.

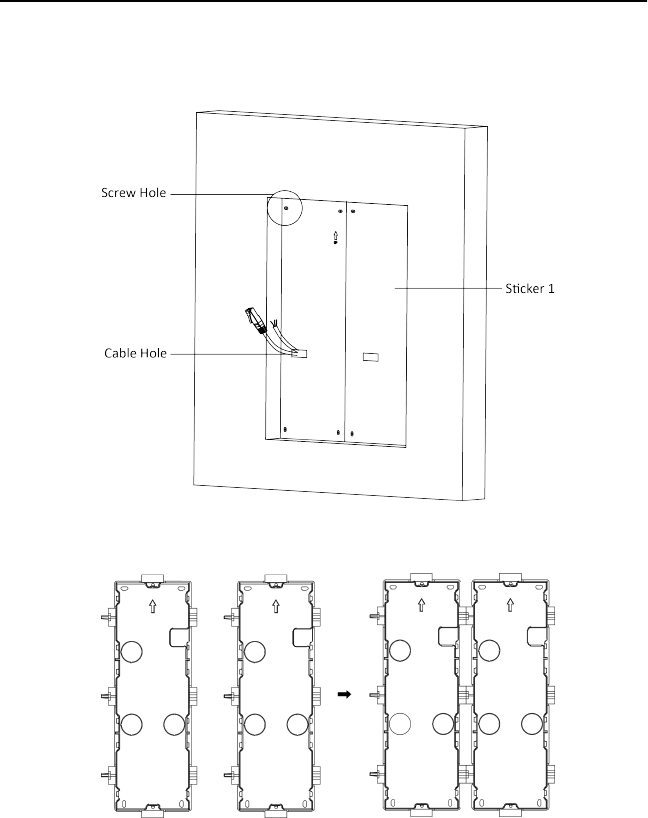

Figure 3-54 Cave the
Installaon Hole
2.
Connect two gang boxes as below.
Figure 3-55 Connect Two Gang Boxes
3.
Remove the plasc sheet of the cable entry which will be used.
Door
