Installation Guide

1) Connect the cables and module-connecng line 1 to the corresponding
interfaces of the main unit, then place the main unit into the upper grid.
2) Connect the other end of the module-connecng line1 to the input interface
of the sub module. Connect all sub modules via module-connecng lines.
3) Organize the line with cable e in the package. The suggested line
connecon picture as below.

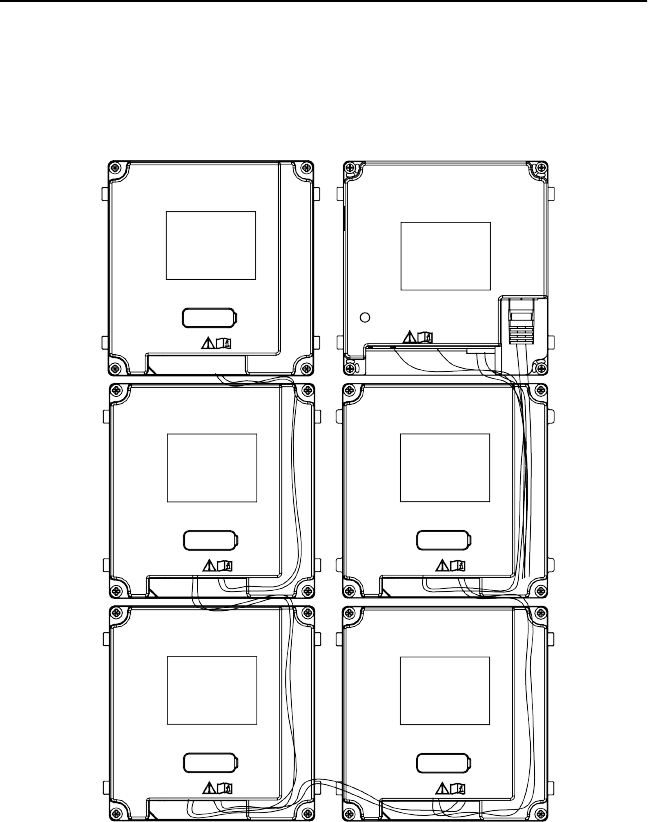

Figure 3-49 Line Connecon Eect Picture
9.
Insert the modules into the frame
aer wiring. Main unit must be placed in the
top grid on the
le.
Door
