Installation Guide

Note
•
There are 6 module-connecng lines in the package: 190 mm × 4 and 400
mm × 2.
•
Take the 400 mm one for this step.
•
The green-yellow line in the package is for grounding.
6.
Fix the mounng frame onto the wall with 8 expansion bolts.

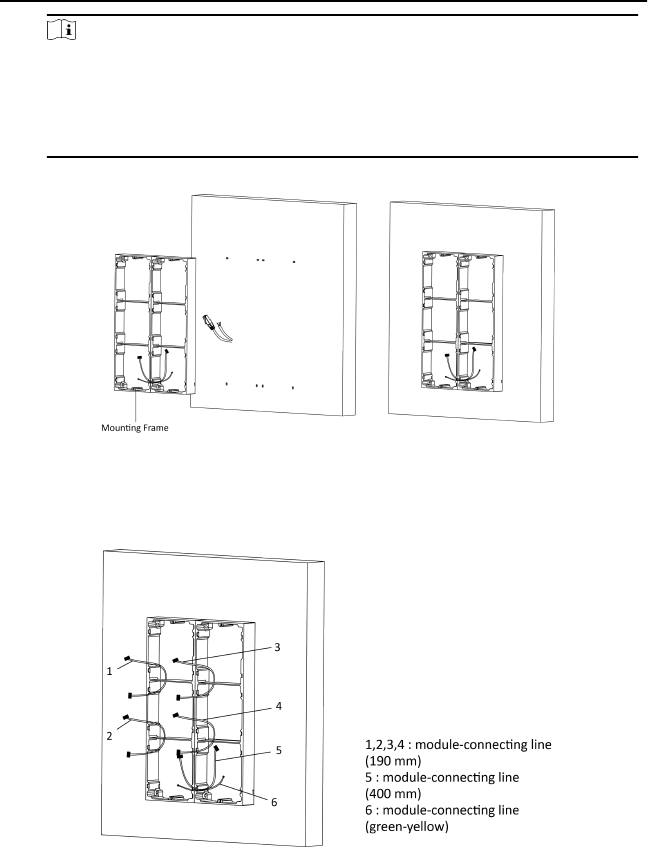

Figure 3-47 Fix the Mounng Frame
7.
Pass the main unit connecng lines across the thread hole to the top grid of the
le frame. Thread the module-connecng line (190 mm) across the thread hole
of the frame. The lines should be placed as below:
Figure 3-48 Placement of Lines
8.
Connect the cables.
Door
Staon Installaon Guide
38
