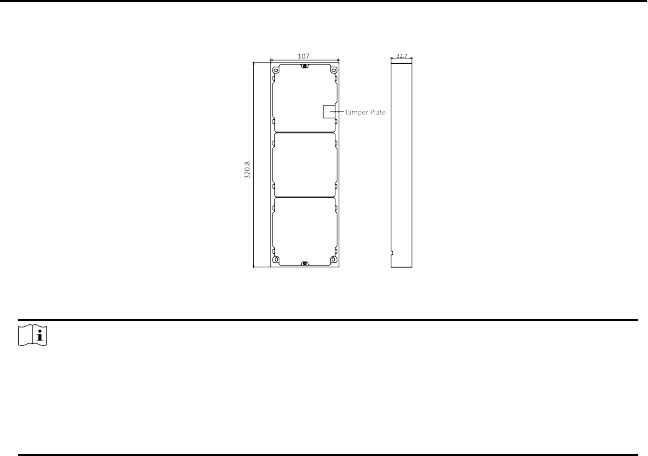

Figure 3-44 Mounng Frame
Note
•
It takes two three-module mounng frames. The dimension of three-module
mounng frame is: 320.8(W)×107 (H)×32.7(D) mm.
•
The dimensions above are for reference only. The actual size can be slightly
dierent from the theorecal dimension.
Steps
1.
Paste two
Scker 1 onto the wall. Make sure the sckers are placed leveled via
measuring with the gradienter.
2.
Chisel 8 holes with drill align to the screw holes on the scker. The suggested size
of hole is 6 (diameter) × 25 (depth) mm. The suggested length of cables le
outside is 270 mm.
3.
Pull out the cable through the cable hole of the le scker.
