Installation Guide

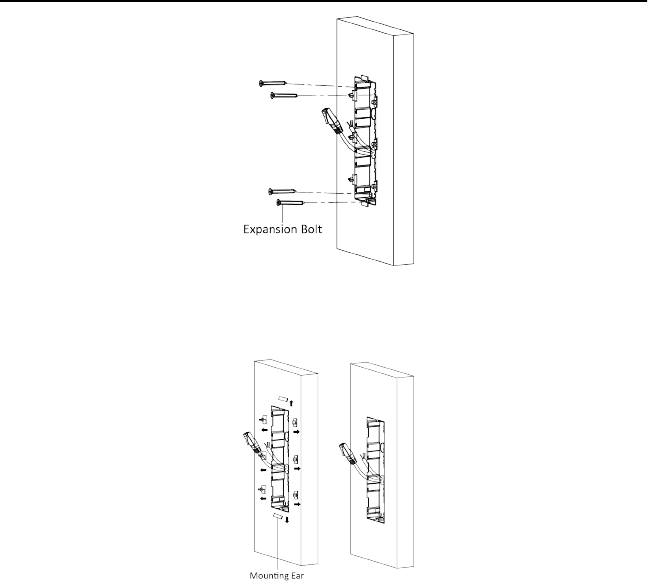

Figure 3-40 Fix the Gang Box
6.
Fill and level up the gap between the gang box and wall with concrete. Remove
the mounng ears with tool aer concrete is dry.
Figure 3-41 Remove the Mounng Ears
7.
Connect wires and insert the modules.
1) Connect Cable 1 and one end of Cable 2 to the corresponding interfaces of
the Main Unit, then place the Main Unit into the upper grid.
2) Connect the other end of Cable 2 to the input interface of Sub Module 1.
Connect one end of Cable 3 to the output interface of Sub Module 1 and
insert it into the middle grid.
3) Connect the other end of Cable 3 to the input interface of Sub Module 2.
Insert it into the boom grid.
Door
Staon Installaon Guide
34
