Installation Guide

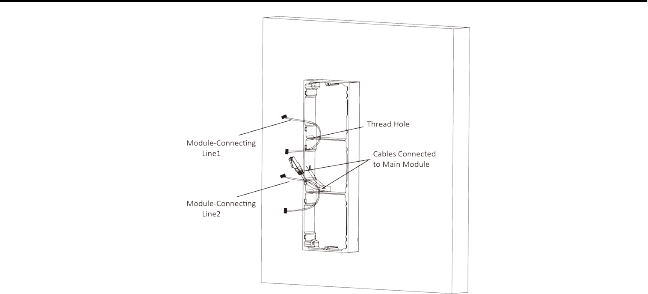

Figure 3-33 Placement of Lines
6.
Connect the cables.
1) Connect the cables and
module-connecng line 1 to the corresponding
interfaces of the main unit, then place the main unit into the upper grid.
2) Connect the other end of the module-connecng line1 to the input interface
of the sub module. Connect two sub modules via module-connecng line 2.
3) Organize the line with cable e in the package. The suggested line
connecon picture as below.
Door
Staon Installaon Guide
29
