Installation Guide

Note
•
The dimension of two-module mounng frame is: 320.8 (W) × 107 (H) × 32.7(D)
mm.
•
The dimensions above are for reference only. The actual size can be slightly
dierent from the theorecal dimension.
Steps
1.
Paste the installaon scker 1 onto the wall. Make sure the scker is placed
leveled via measuring with the gradienter.
2.
Chisel 4 holes with drill align to the screw holes on the scker.The suggested size
of hole is 6 (diameter) × 25 (depth) mm. The suggested length of cables le
outside is 270 mm.

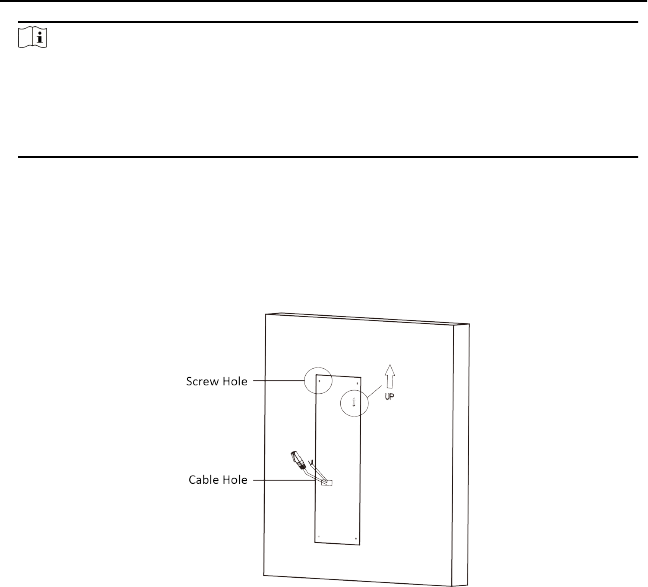

Figure 3-30 Chisel Screw Hole
3.
Remove the scker and insert the expansion sleeves into the screw holes.
4.
Fix the mounng frame onto the wall with 4 expansion bolts.
Door
Staon Installaon Guide
26
