Installation Guide

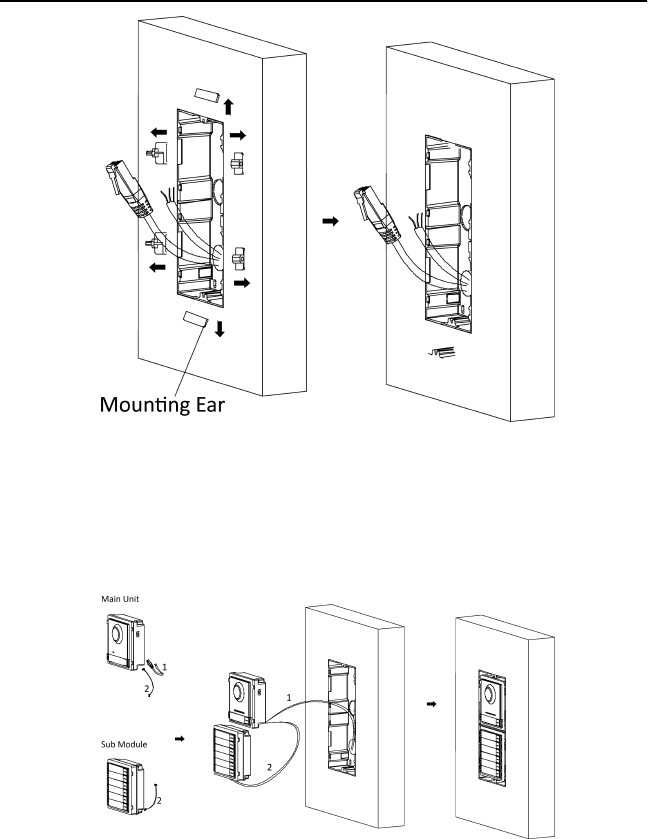

Figure 3-26 Remove the Mounng Ears
7.
Connect wires and insert the modules.
1) Connect Cable 1 and one end of Cable 2 to the corresponding interfaces of
the main unit, then place the main unit into the upper grid.
2) Connect the other end of Cable 2 to the input interface of the sub module.
Insert it into the lower grid.
Figure 3-27 Connect Wires and Insert the Modules
Door
Staon Installaon Guide
