Installation Guide

The sub module address and corresponding switch status as below.

Table 3-1 Descripon

Sub Module

Address

Digit 1 Digit 2 Digit 3 Digit 4

1 ON OFF OFF OFF

2 OFF ON OFF OFF

3 ON ON OFF OFF

4 OFF OFF ON OFF

5 ON OFF ON OFF

6 OFF ON ON OFF

7 ON ON ON OFF

8 OFF OFF OFF ON

3.2 One-Module Installaon

3.2.1 Surface Mounng

Before You Start

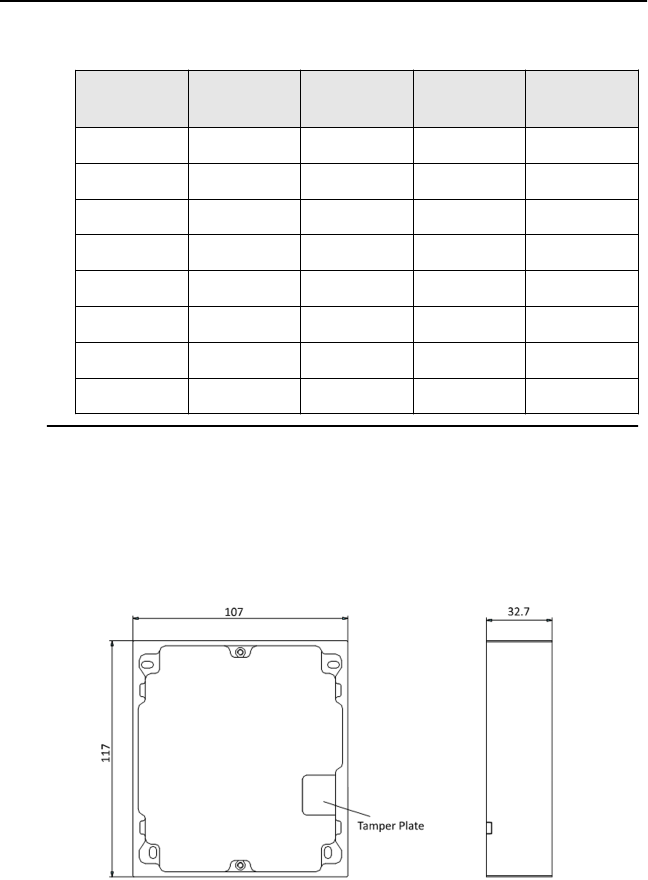

Figure 3-2 Mounng Frame

Door

Staon Installaon Guide
