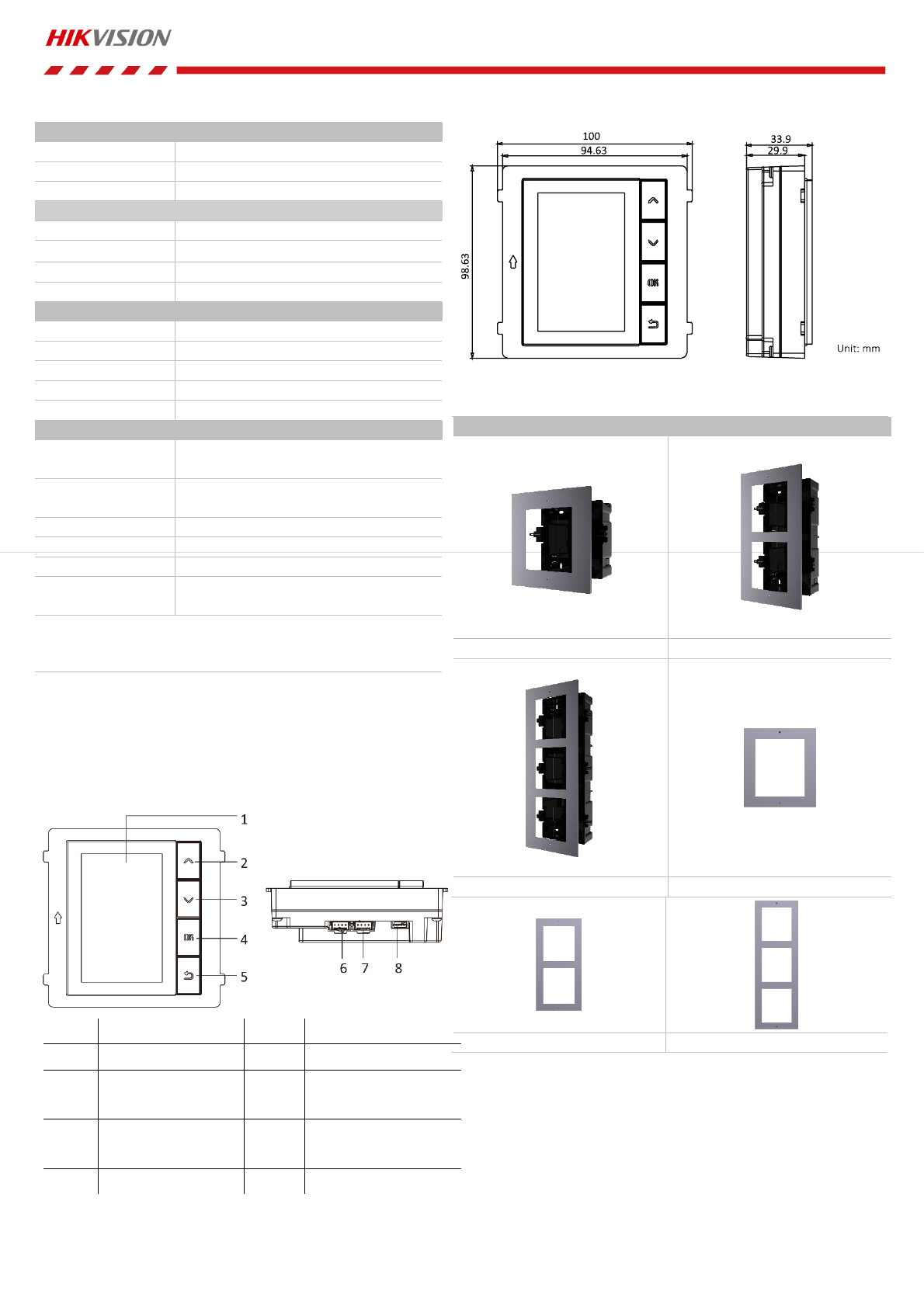

Data Sheet

Specification
System parameters
Processor
Embedded MCU Processor
Storage
64 MB
Flash
8 MB
Display parameters
Screen
3.5-inch TFT LCD screen
Resolution
320 × 480p
Backlight
Supported
Operation method
Physical buttons
Interfaces
Module-connecting
2 (1 input, 1 output)
Power input
12VDC( From the other module)
Power output
12VDC( For the other module)
Physical buttons
4( Up, Down, OK, Back)
Debugging port
1
General
Power
consumption
≤ 3 W
Working
temperature
-20° C to +60° C(-4° F to 140° F)
Working humidity
10% to 95%
IP protection level
IP65
Installation
Flush mounting, surface mounting
Dimension
98.5 mm × 100 mm × 34.2 mm (3.87" ×
3.95" × 1.33")
Note: Listed resolutions are only selectable options. It does not
mean that all streams can work at their maximum resolution at the
same time.
Available Model
DS-KD-DIS
Appearance and Interfaces
No.
Description
No.
Description
1
Screen
5
Back Button
2
Up Button
6
Module-connecting
Interface (output)
3
Down Button
7
Module-connecting
Interface (input)
4
OK Button
8
Debug Port
Dimension
Accessory
Optional
DS-KD-ACF1/Plastic
DS-KD-ACF2/Plastic
DS-KD-ACF3/Plastic
DS-KD-ACW1
DS-KD-ACW2
DS-KD-ACW3
