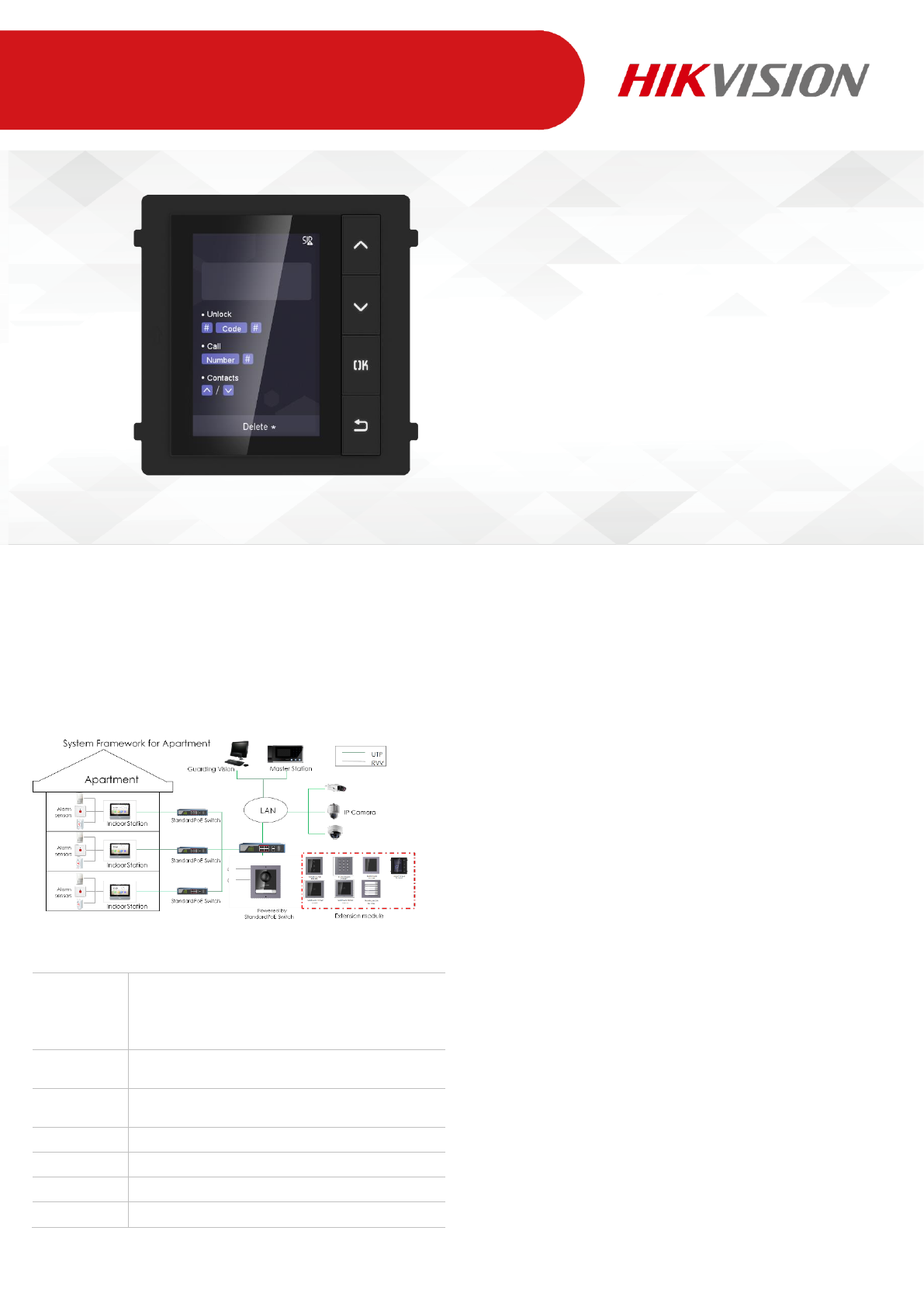

Data Sheet

DS-KD-DIS

Video Intercom Display Module

Key Feature

 3.5-inch LCD screen with resolution: 320 × 480p

 4 physical buttons with backlight

 Up to 500 contacts can be added to the device

 Dials number and calls indoor station with keypad module

 Unlocks door by PIN code with keypad module

 Multiple languages

Typical Application

Approval

CE-EMC

a. EN 55032:2015

b. EN 61000-3-2:2014

c. EN 61000-3-3:2013

d. EN 50130-4:2011 +A1:2014

CE-LVD

EN 60950-1:2006 + A11:2009 + A1:2010 +

A12:2011 + A2:2013

IEC 60950-1:2005 (Second Edition) + Am

1:2009 + Am 2:2013

C-TICK(EMC)

AS/NZS CISPR 32:2015

ROHS

2011/65/EU

REACH

Regulation (EC) No 1907/2006

WEEE

2012/19/EU

PAGE 1
DS-KD-DIS Video Intercom Display Module Key Feature  3.5-inch LCD screen with resolution: 320 × 480p  4 physical buttons with backlight  Up to 500 contacts can be added to the device  Dials number and calls indoor station with keypad module  Unlocks door by PIN code with keypad module  Multiple languages Typical Application Approval C-TICK(EMC) a. EN 55032:2015 b. EN 61000-3-2:2014 c. EN 61000-3-3:2013 d.
PAGE 2
Dimension Specification System parameters Processor Storage Flash Display parameters Screen Resolution Backlight Operation method Interfaces Module-connecting Power input Power output Physical buttons Debugging port General Power consumption Working temperature Working humidity IP protection level Installation Dimension Embedded MCU Processor 64 MB 8 MB 3.
