Figure 3-4 Correct the Whole Screen
-
Correct the selected area of the screen: click , and input the start coordinate and end
coordinate of the desired area.

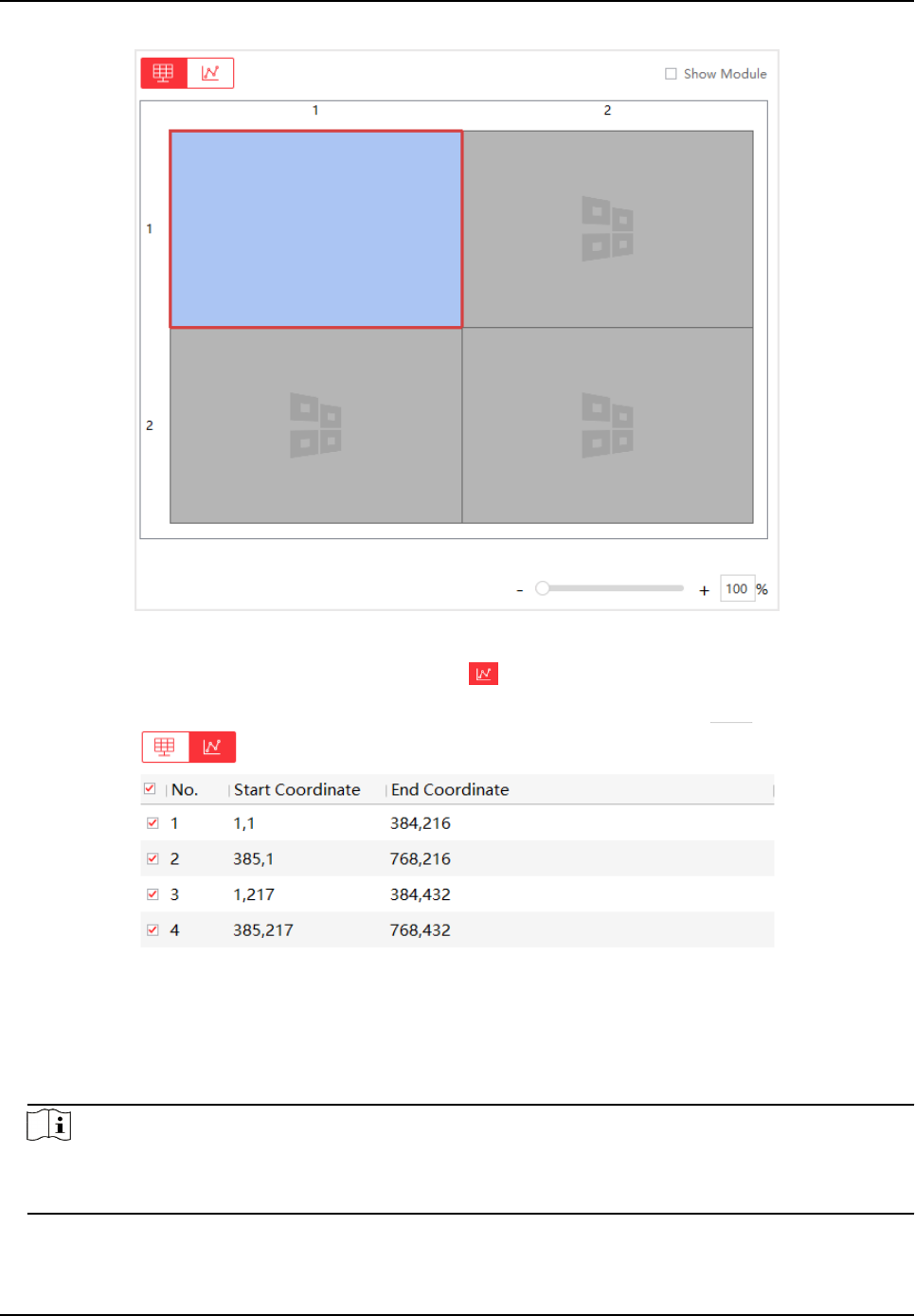

Figure 3-5 Correct the Area of the Screen
6. Adjust RGB value.
-
Drag the bars.
-
Enter numbers in the text boxes.
Note
• You can check Simultaneous Adjustment to adjust RGB simultaneously.
• The number ranges from 800 to 1200, and the default value is 1000.
