Indicator Descripon Indicator Descripon
BACK • Long press: unlock the menu
lock and press the knob to
enter menu mode
• Short press: back to the
previous menu or the main
menu
SOURCE/
TEST
• Long press: enter the image
test mode
• Short press: switch the signal
source
POWER UP/
DOWN
• Long press: device in sleep
• Short press: awake the
device
—— ——
Rear Panel

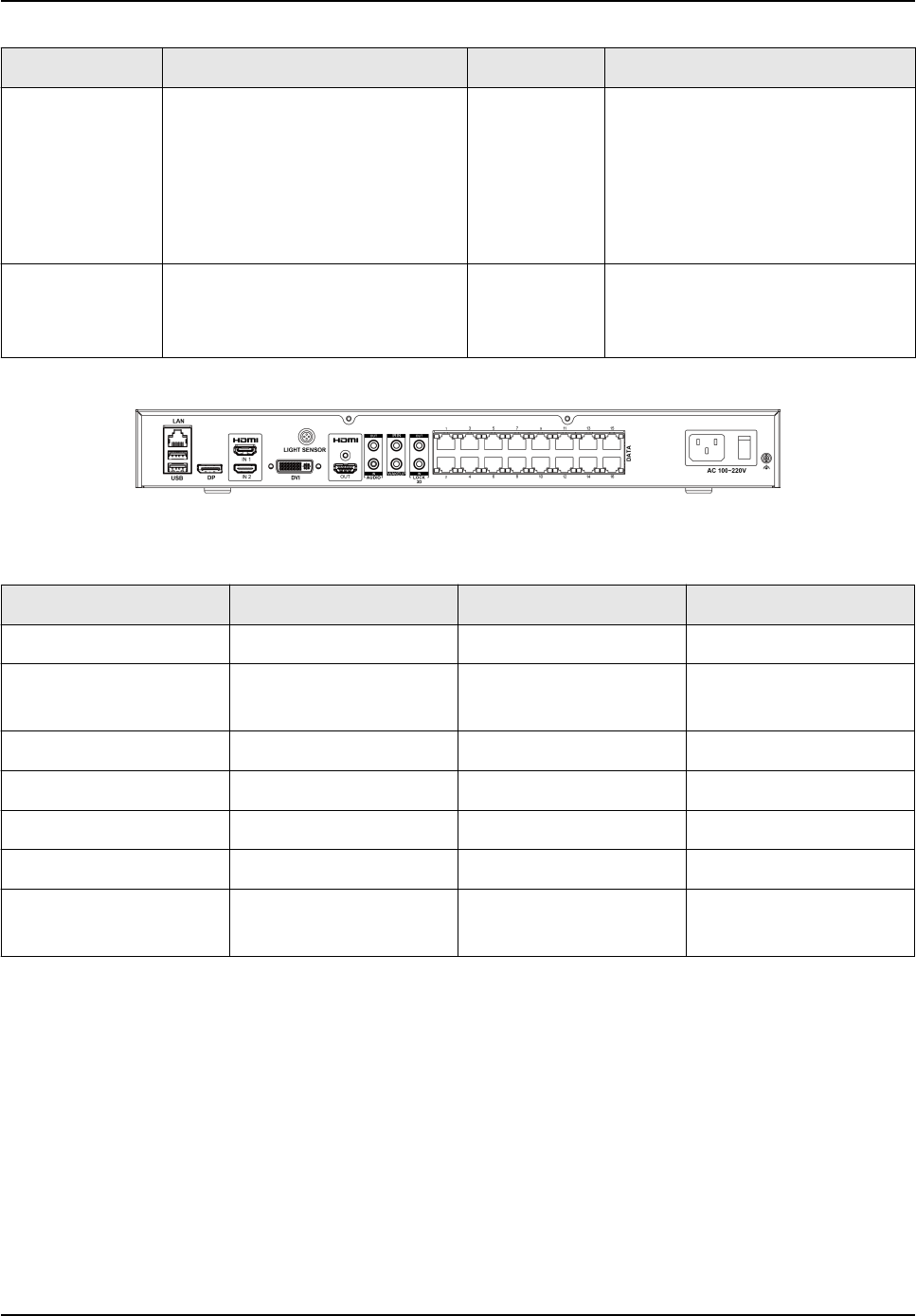

Figure 1-2 Rear Panel Interface
Table 1-2 Interface Descripon of Rear Panel
Interface Descripon Interface Descripon
LAN Network signal input USB USB interface
DP DP interface HDMI IN 1/IN 2 HDMI signal input 1/
input 2
HDMI OUT HDMI signal output LIGHT SENSOR Light sensor interface
DVI DVI interface AUDIO IN/OUT Audio input/output
IR IN Infrared input WAKEUP Wakeup interface
3D OUT 3D signal output 3D IN 3D signal input
DATA 16 network port
output
Power 110 to 220 VAC
