Network Video Recorder Quick Start Guide
7
Chapter1 Panels Description
1.1 Front Panel

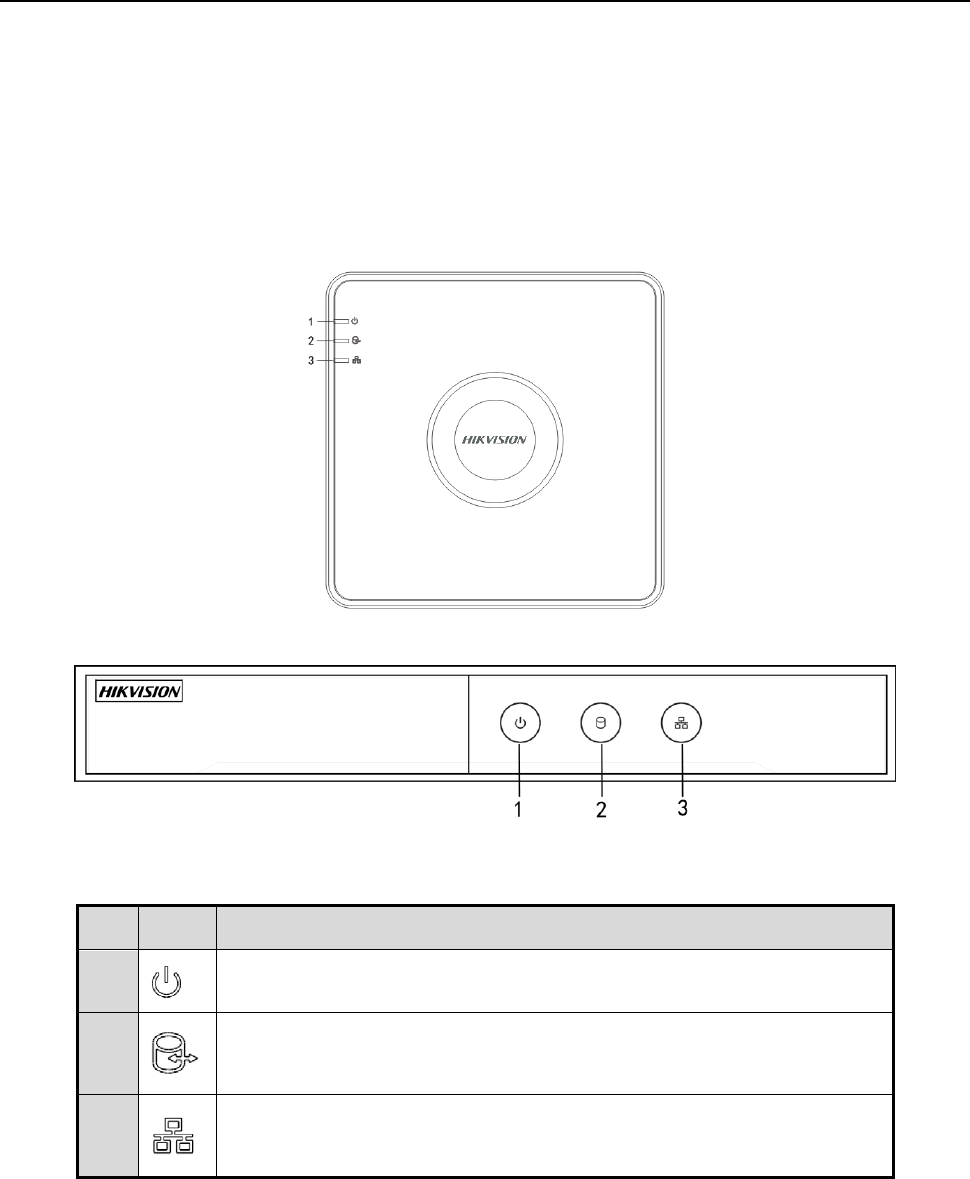

Figure 1-1 DS-7100NI-Q1 (/P) Series
Figure 1-2 DS-7100NI-Q1 (/P)/M Series
Table 1-1 Description of Front Panel
No.
Icon
Description
1
Indicator turns red when NVR is powered up.
2
Indicator lights in red when data is being read from or written to
HDD.
3
Indicator blinks blue when network connection is functioning
properly.
