3. Align the mounting base with the adapter plate and route the
mounting base anticlockwise to get it fitted with the adapter plate,
and then fix it by tightening the lock screw.

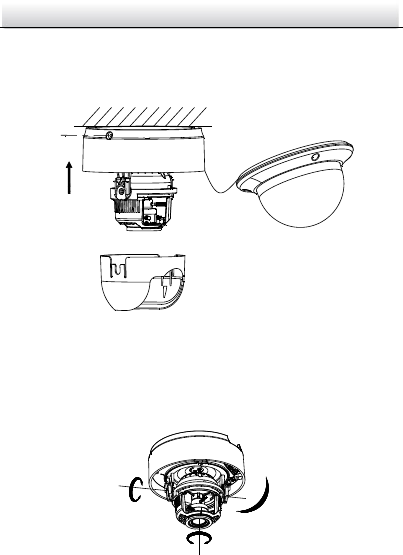

Install the Mounting Base Figure 2-4
4. Adjust the surveillance angle according to the figure below.
Panning angle [0~80°], tilting angle [0~355°], and azimuth angle of
the lens [0~355°].
3-axis Adjustment Figure 2-5
Lock
Screw
0~80°
0~355°
0~355°
