Data Sheet

DS-1604ZJ-BOX-Corner
Corner Mounting Bracket for Speed Dome
Feature
 Corner mounting bracket with the junction box
 Aluminum alloy and steel material with surface spray treatment
 Supports bottom outlet and back outlet
 Able to place the power adapter (AC 24 V, 3 A) in the junction box
 The hook for safety rope facilitates speed dome’s installation

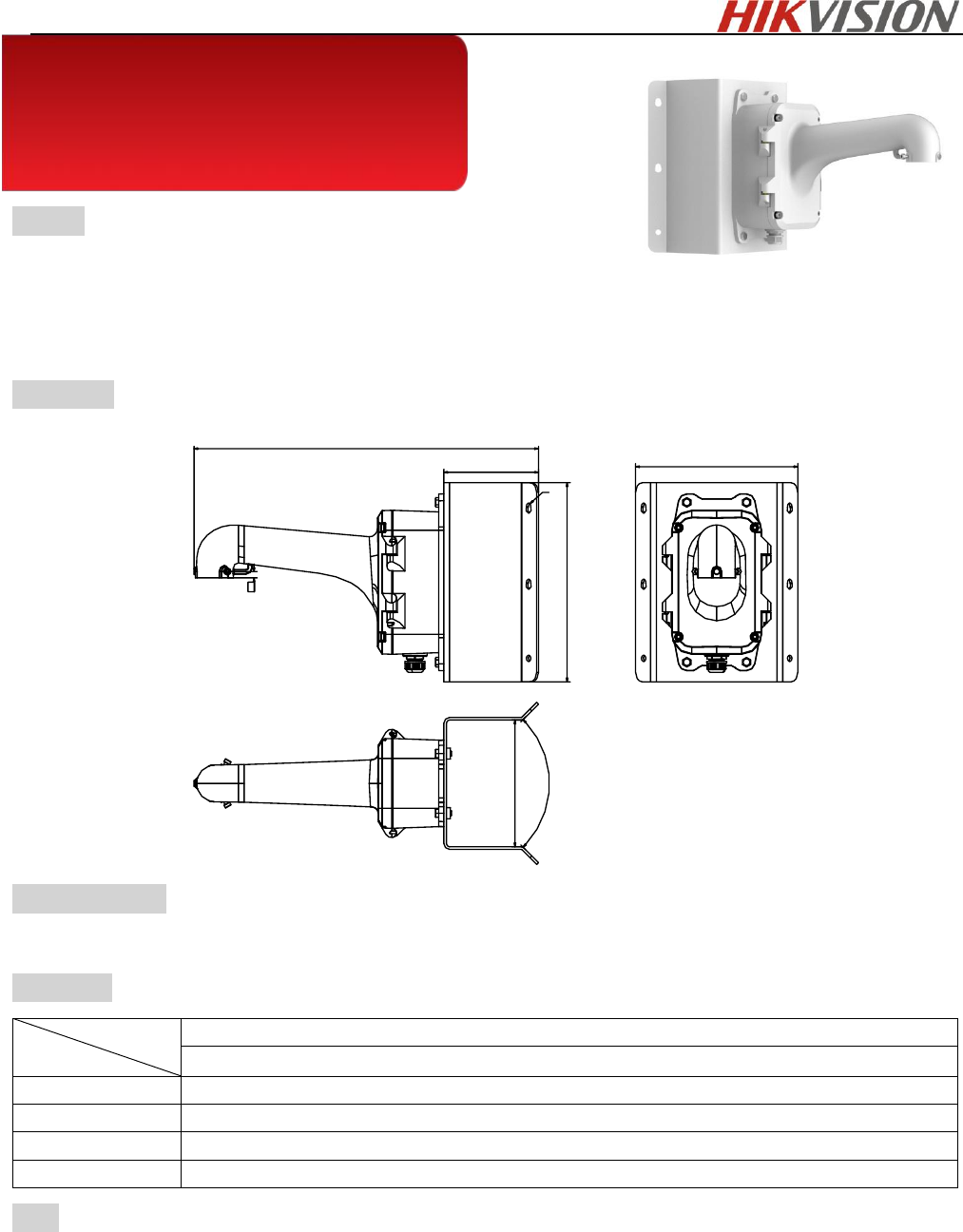

Dimension
542.5 mm (21.36")
149 mm (5.87")
314 mm (12.36")
10
255.5 mm (10.06")
200 mm (7.87")
90
°
6-Φ10 mm
(0.39")
Available Model
DS-1604ZJ-BOX-Corner
Parameter
Model
Parameters
DS-1604ZJ-BOX-Corner
Corner Mounting Bracket for Speed Dome
Appearance
Hikvision White
Material
Aluminum Alloy and Steel
Dimension
542.5 mm × 255.5 mm × 200 mm (21.36" × 10.06" × 7.87")
Weight
6.2 Kg (13.67 lb.)
Note
 The bracket should be installed on the flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the bracket.
 The bracket’s maximum load capacity is 10 Kg (22 lb.).
