Leaflet

www.hikvision.com
Key features
Dimensions
Accessories
•
•
•
•
•
•
•
1/3" Progressive Scan CMOS
20X Optical Zoom (4.3-86.0mm)
True Day/Night, 3D DNR
25fps(P)/ 30fps(N) at 1280x960 resolution
H.264/MJPEG, Dual Streaming, Privacy Masking
120m IR Distance
Weather-proof: IP66 rating

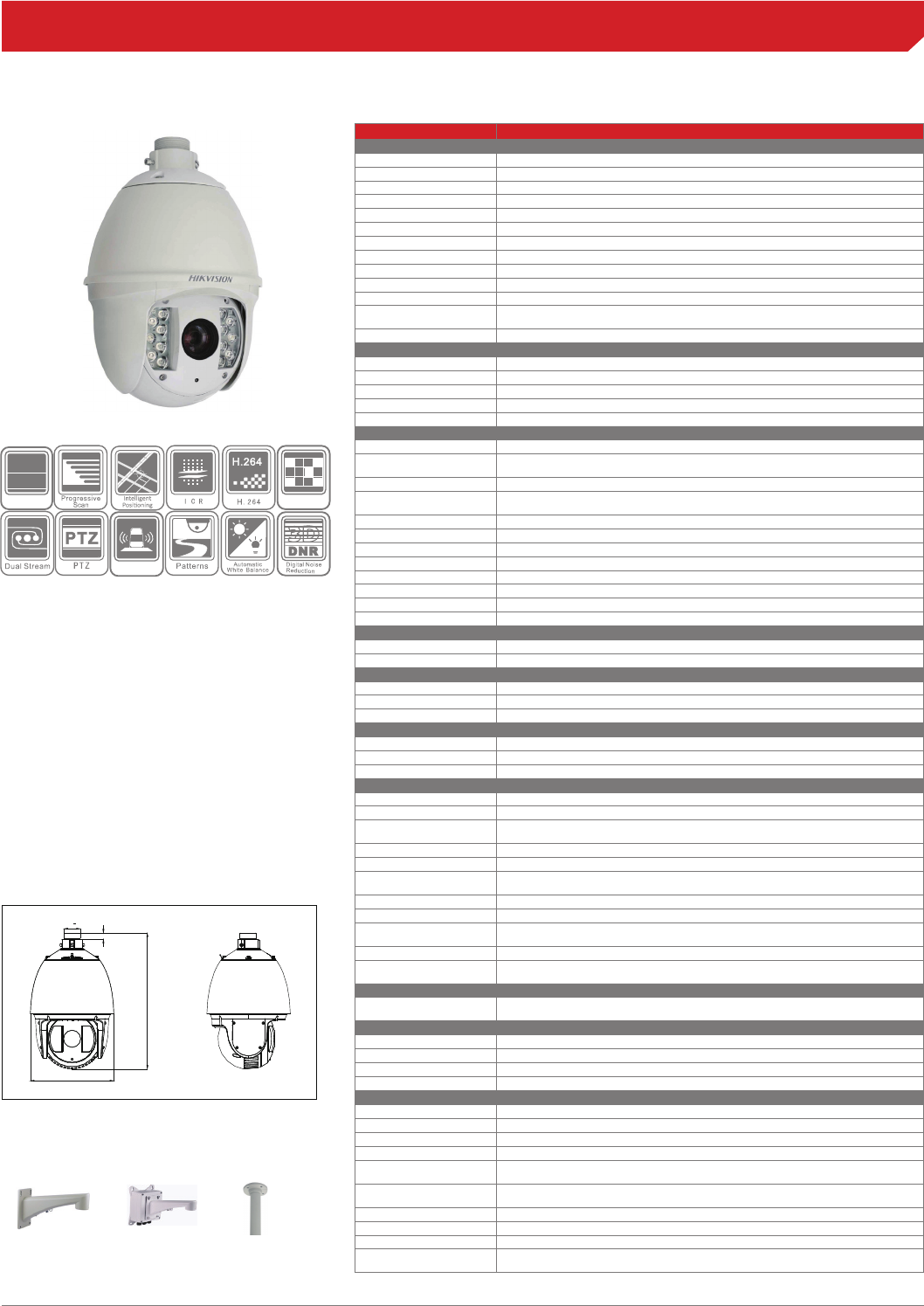

DS-2DF7274-A
1.3 MP Network IR Speed Dome
18
G1
1
2
245
399
Unit:mm
DS-2DF7274-A
Camera
Image Sensor 1/3" Progressive Scan CMOS
Effective Pixel 1300K pixels
Min. Illumination Color: 0.05Lux@( F1.4, AGC ON), B/W: 0.005Lux@( F1.4, AGC ON), 0 Lux with IR
White Balance Auto / Manual / One touch WB/ATW
AGC Auto / Manual
S / N Ratio ≥ 50dB
DNR off/Normal/expert
BLC On / Off
Shutter Time 50Hz: 1/25-1/100,000s, 60Hz: 1/30-1/100,000s
Day & Night IR Cut Filter
Digital Zoom 16
Privacy Masking
24 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video
screen
Focus Mode Auto / Semiautomatic / Manual
Lens
Focal Length 4.3-86.0mm, 20x
Zoom Speed Approx.5s(Optical Wide-Tele)
Angle of View 54.1-3.2 degree (Wide-Tele)
Min. Working Distance 10-1,500mm(Wide-Tele)
Aperture Range F1.4- F2.6
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan Manual Speed: 0.1°-160°/s,
Pan Preset Speed: 160°/s
Tilt Range -2°-90° (Auto Flip )
Tilt Speed
Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed: 120°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display On / Off
Preset Freezing Support
Infrared
IR Distance 120m
IR Intensity Automatically adjusted, depending on the zoom ratio
Alarm
Alarm Input 7
Alarm Output 2 relay outputs, alarm response actions congurable
Alarm Action Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notication on Client
Input/ Output
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio Input Audio input (LINE input), 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output Line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector
Max.Image Resolution 1280×960
Frame Rate
50Hz:25fps(1280×960), 25fps (1280×720)
60Hz:30fps(1280×960), 30fps (1280×720)
Image Compression H.264/MJPEG/MPEG4
Audio Compression G.711ulaw/G.711alaw/G.726
Protocols
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IG
MP, ICMP,DHCP,PPPoE
Number of Simultaneous Live View
Up to 10
Dual Streams Support
Mini SD Memory Card
Manual REC / Alarm REC.
Built-in SD/SDHC Slot, up to 32GB
User/Host Level Up to 32 users,3 Levels: Administrator, Camera control, Live view only
Security Measures
User authentication (ID and PW),
Host authentication (MAC address)
System Integration
Interface for application
programming
Open-ended API, support Onvif, PSIA and CGI, hikvision SDK
Client GUI
Camera Control Pan / Tilt, Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode.
Camera Name Up to 18 characters
Date & Time Display Time: Week: Date, 6 formats on the Client
Reading Patrol Message Display and reading of preset message contained in each patrol via client software
General
Menu Language English
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply 24VAC/3A
Power Consumption Max. 50W(IR LED On),Max. 35W(IR LED Off)
Working Temperature /
Humidity
-30 ℃ -65℃ (-22 ℉ -149 ℉ )(outdoor)
90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimensions
Φ
245×399mm (
Φ
9.65”×15.71”)(Outdoor)
Weight (approx.) 5.5kg(12.13Ibs)
Mount Option
Long-arm wall mount: DS-1614ZJ; Indoor short-arm wall mount: DS-1615ZJ
Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ
”
3D
Alarm
”
CMOS
CMOS
3D
1/3
Privacy Masking
DS-1614ZJ
(Long-arm Wall Mount Bracket)
DS-1634ZJ
Wall Mount
DS-1662ZJ
Pendant Mount
