HD
-SDI Camera
ยท
User Manual
15
15

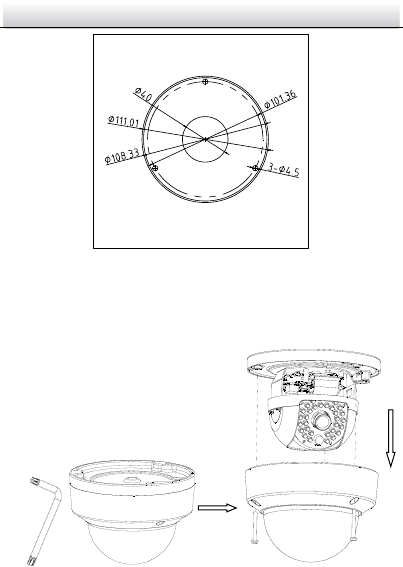

Drill T
emplate
Figure 2-4
2.
Loosen the set screws with a
hex k
ey (supplied) to remove the lower d
ome.
Remove the Lower
Dome
Figure 2-5
Hole
Hole
Hole
Ceiling Mounting
