Table Of Contents
1 Introduction
1.1 Product Features
1.2 Overview
2 Installation
2.1 Installation of HD-SDI Bullet Camera
2.2 Installation of HD-SDI Dome Camera
3 Menu Description
3.1 LENS
3.2 EXPOSURE
3.2.1 Shutter
3.2.2 AGC
3.2.3 SENS-UP
3.2.4 Brightness
3.2.5 ACCE(Adaptive Contrast & Color Enhancement)
3.2.6 Defog
3.2.7 Backlight
Backlight Compensation (BLC)
HSBLC
3.2.8 White Balance (WB)
3.3 Day & Night
3.4 NR
3.5 SPECIAL
3.5.1 Camera Title
3.5.2 D-effect
3.5.3 Motion
3.5.4 Privacy
3.5.5 Language
3.5.6 Defect
3.5.7 RS485
3.5.8 Version
3.6 ADJUST
3.6.1 Sharpness
3.6.2 Monitor
3.6.3 OSD
3.6.4 LSC
3.6.5 NTSC/PAL
3.7 RESET
3.8 EXIT
HD
-SDI Camera
·
User Manual
13
13
Drill T
emplate

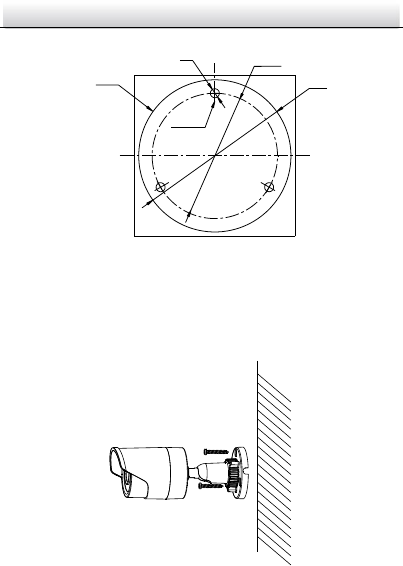

Figure 2-1
2.
Route the corr
esponding cables.
3.
Fix the camera to the w
all with the supplied P A4 screws.
Secure the
Camera to the W
all
Figure 2-2
φ68
55
φ
φ4
Cutting line
Screw
Hole
Template
1
...
...
11
12
13
14
15
...
...
41
