7.4 6500-101-03 Prox Antenna
The iCLASS SE Reader Module is optimized for operation with this Prox antenna. No
external components are required.
Figure 16: 6500-101-03 Prox Antenna
7.4.1 Mechanical Data
Detailed drawings are available at the iCLASS SE Reader Module micro-site.
The antenna has two 76.2mm 28AWG mag wire leads for interconnection to the iCLASS SE
Reader Module. For soldering, a strip end with 3.81mm is included.

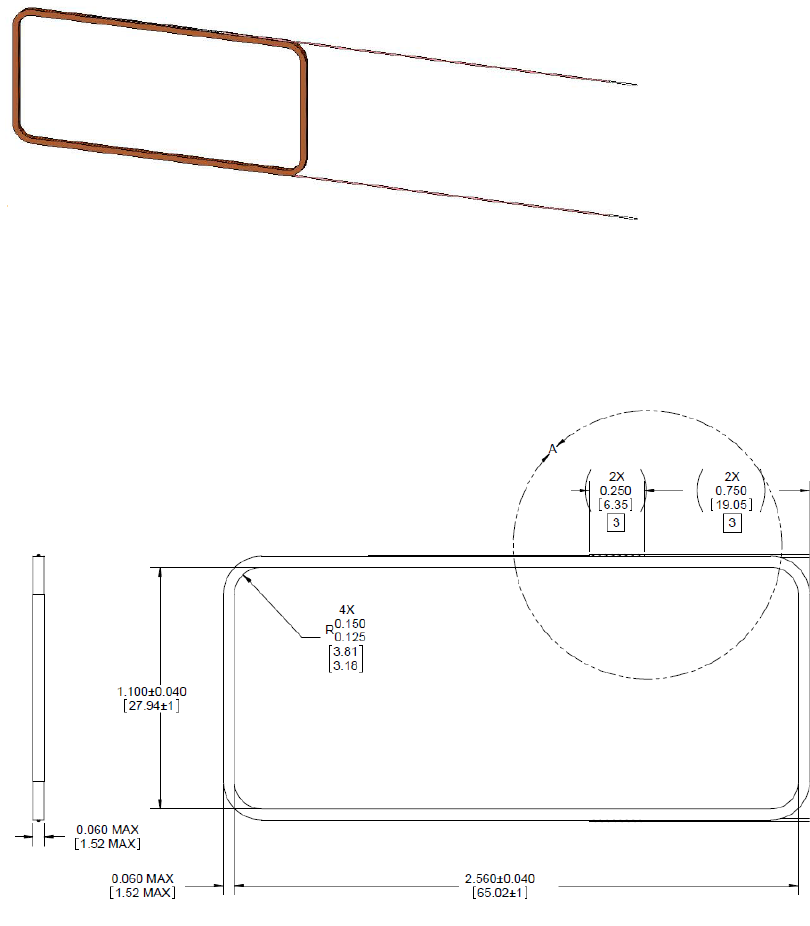

Figure 17: 6500-101-03 Mechanical Drawing
7.4.2 Electrical Characteristics
