Chapter 7 Evaluation Software
Hi-G-Tek Ltd. Micro electronics & Asset Tracking Technology - 91 -
The parameters of the DataReader are divided into 2 groups: MCU and RF
Modem. Each group has its own tab in the Rea de r Setu p window. Some
parameters are read-only. These parameters appear over a grey background
(like the Firmware Version parameter in Figure 7-0)
If you want to change the value of one or more parameters, enter the new
value(s) in their corresponding text boxes, and then click Apply to write
the new values to the DataReader. To read the current values from the
DataReader click on the Re f resh butt on.
7.4 The Verify and Set Window
The Ve rify and Se t window contains the most useful commands in a way
that is easy to use.

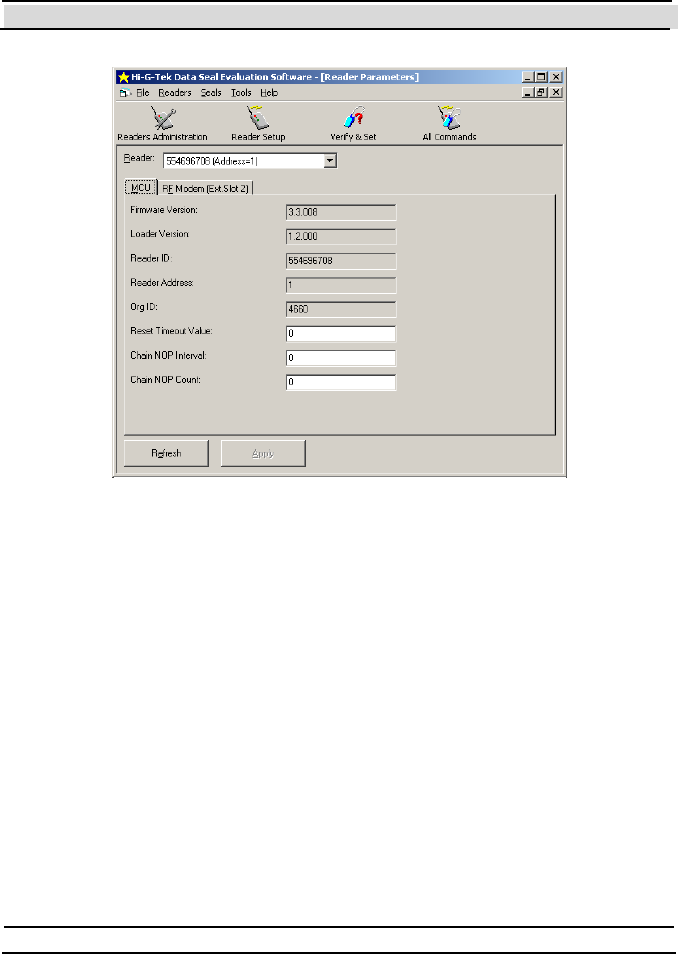

Figure 7-0
