Chapter 5 DataReader Installation and Operating Instructions
Hi-G-Tek Ltd. Micro electronics & Asset Tracking Technology - 55 -

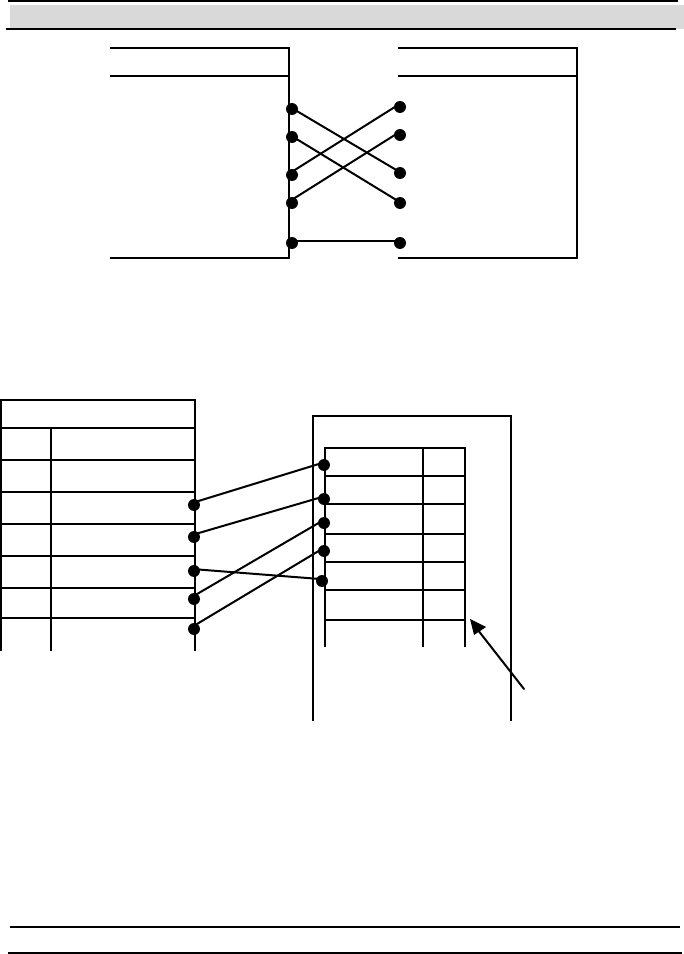

Moxa A53 Wiring:
MOXA
TXB 1
TXA 2
RXB 3
RXA 4
GND 5
PWR- 6
PWR+ 7
Reader TB1
1 PWR+
2 PWR-
3 RXB
4 RXA
5 GND
6 TXB
7 TXA
Terminal
Block
DataReader
RXA
RXB
TXA
TXB
SIG-GND
DataReader
RXA
RXB
TXA
TXB
SIG-GND
