Chapter 5 DataReader Installation and Operating Instructions
Hi-G-Tek Ltd. Micro electronics & Asset Tracking Technology - 49 -

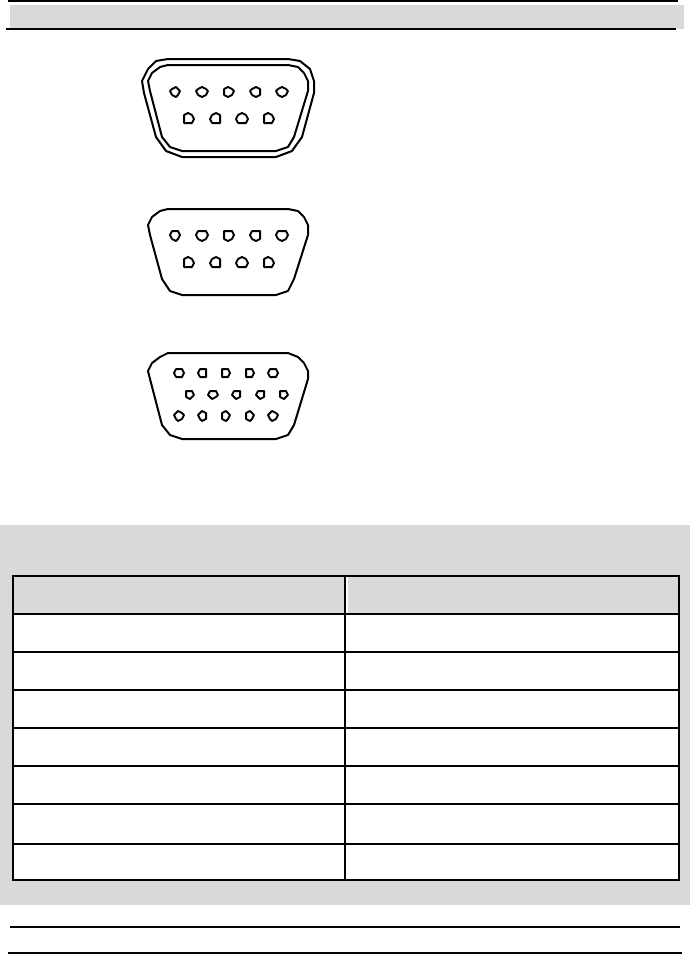

DB9 MALE
PIN ARRAGEMENT
1
5
6
9
DB9 FEMALE
PIN ARRAGEMENT
15
6
9
DB15 FEMALE
PIN ARRAGEMENT
1
5
6
10
1115
5.2.3 RS-232 Wiring Diagram
4. P in assignment for P WR/COM IN (P 1) & P WR/COM OUT (P3)
Funct ion Pin Number
Positive Power 1
Positive Power 2
Signal GND 3
Negative Power 4
Negative Power 5
TX 6
RX 7
