Chapter 5 DataReader Installation and Operating Instructions
- 46 - Hi-G-Tek Ltd. Micro electro nic s & A sset Tra cking Techno logy

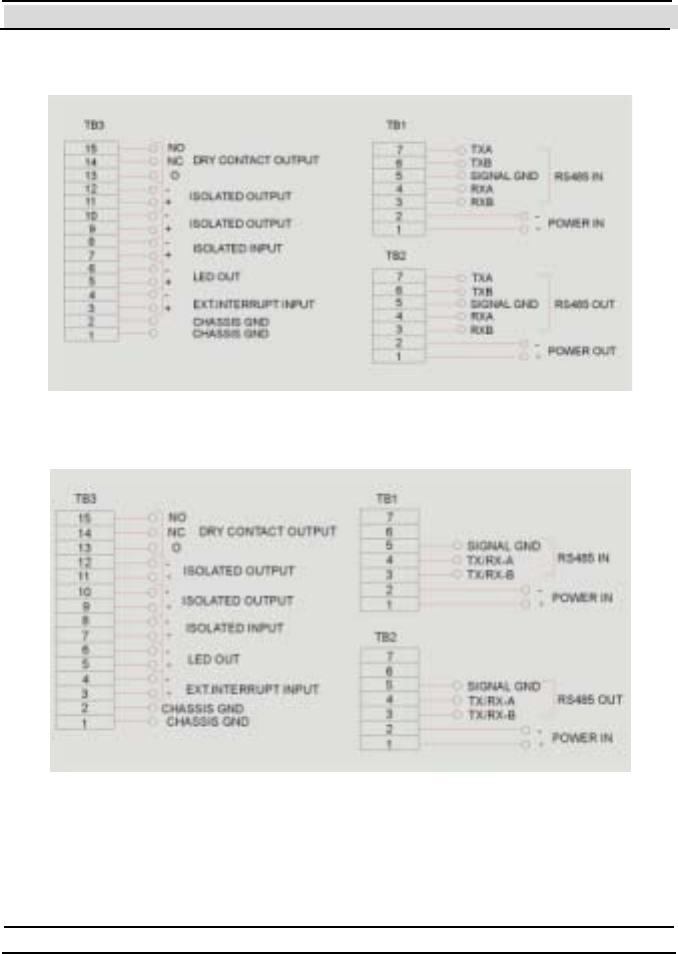

5.1.5 RS-485 Full Duplex Wiring Diagram
5.1.6 RS-485 Half Duplex Wiring Diagram
5.1.7 DataReader Configuration Sw itches
S1: Reserved for future use. Must be OFF.
