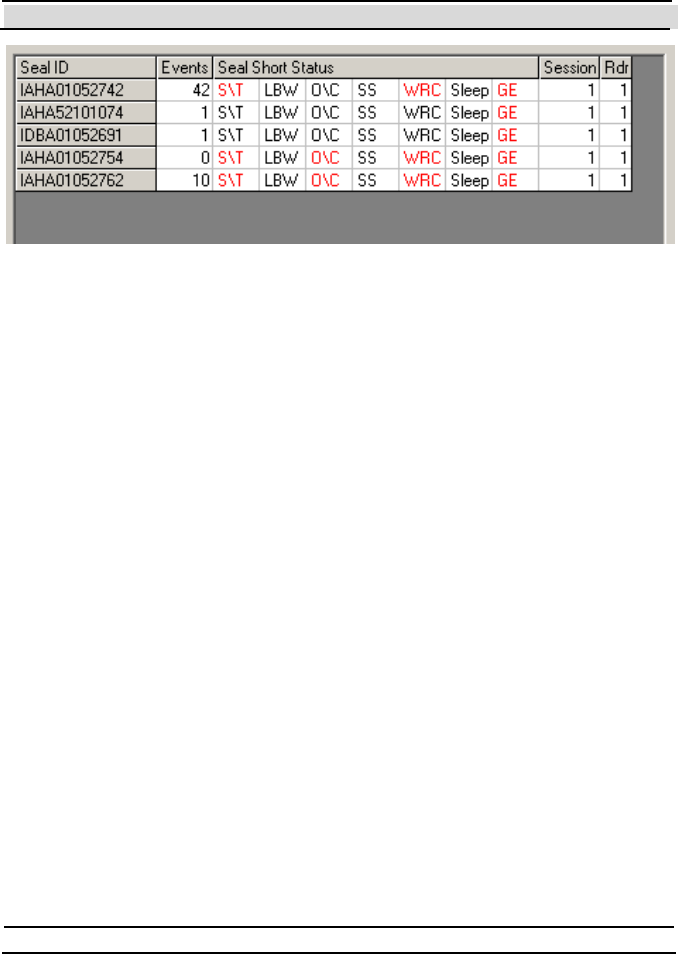

Figure 2-5 - 5 DataSeals Detected.
Clicking the Single Interrogation button again will add another one or
more lines to the list. T o clear the list, click on the Rese t butto n at t h e
bottom of the window.
A complete explanation about the results you see is out of the scope of this
Quick-Start chapter. Nevertheless, there are 2 flags in the DataSeal's Short
Status that are worth a brief explanation here.
2.7 A Brief Tutorial Through the States of the DataSeal
The DataSeal has many flags that determine its state, as well as Parameters,
Event Records and User Data. Even though most of these features are out
of the scope of this chapter, 2 of the flags represent the most fundamental
concepts of the DataSeal. T hese flags are the Tampered flag (shown in
Figure 2-5 as "S/T"), and the Opened flag (shown in Figure 2-5 as "O/C").
Note that in the Evaluation Software, flags that are set appear in red, while
unset flags appear in black.
If you have followed t his guide st ep by st ep up to t his point, you should
have both flags off (black). If you cleared the list, click Single
Interrogation (the upper one) again to see the flags.
