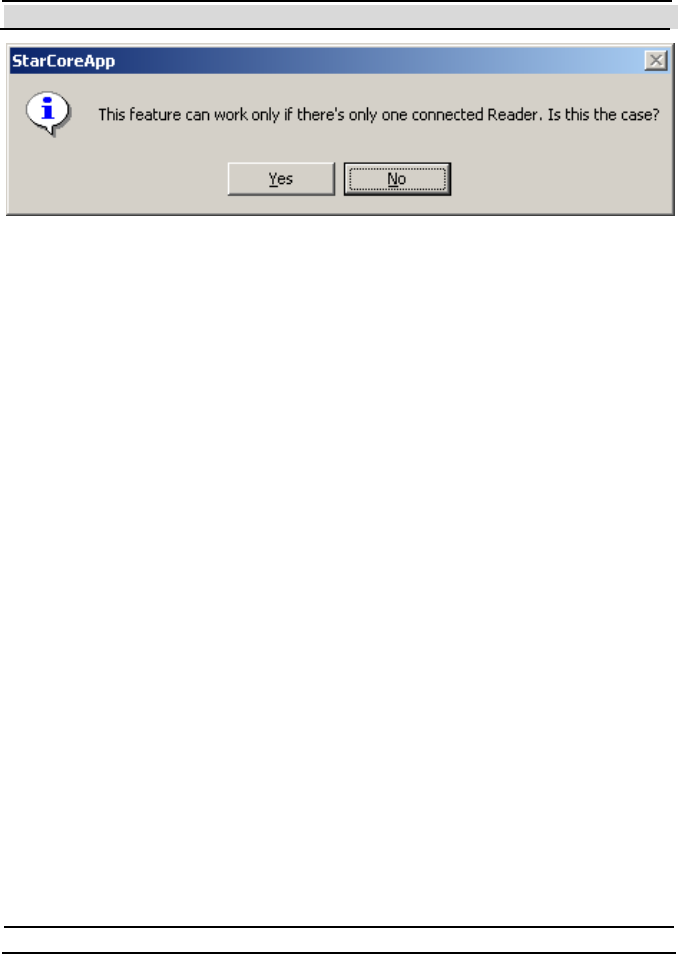

Figure 2-2 - Auto Detect Wa rning Message.
Because you're using the Demo System that includes only one DataReader,
click Yes .
If everything is connected appropriately, a message window will appear
saying "Reader was added successfully". Click OK to close this message.
If instead of this message, a "Timeout" message appears, check your
connections and verify that the communication port setting corresponds to
t he one you're using. Remember t o click on Set Comm Port each t ime you
change the communication port setting.
If a different message appears, refer to chapter 9 for troubleshooting.
The DataReader's ID is now added to the list with a Reader Address of 1.
Click on the Close button to close the Rea de rs Admini strati on win do w.
2.5 Preparing the DataSeal/DataTag
DataSeals provided by Hi-G-T ek leave the factory in a special power
saving mode called "Deep Sleep Mode". Before you can communicate
normally with a DataSeal, you must send it a special command called
"Hard Wakeup" that returns the DataSeal into its normal mode of
operation. You will then have to close the Sealing Wire (as will be
