User Manual

Chapter 7 Evaluation Software
Hi-G-Tek Ltd. Micro electronics & Asset Tracking Technology - 129 -

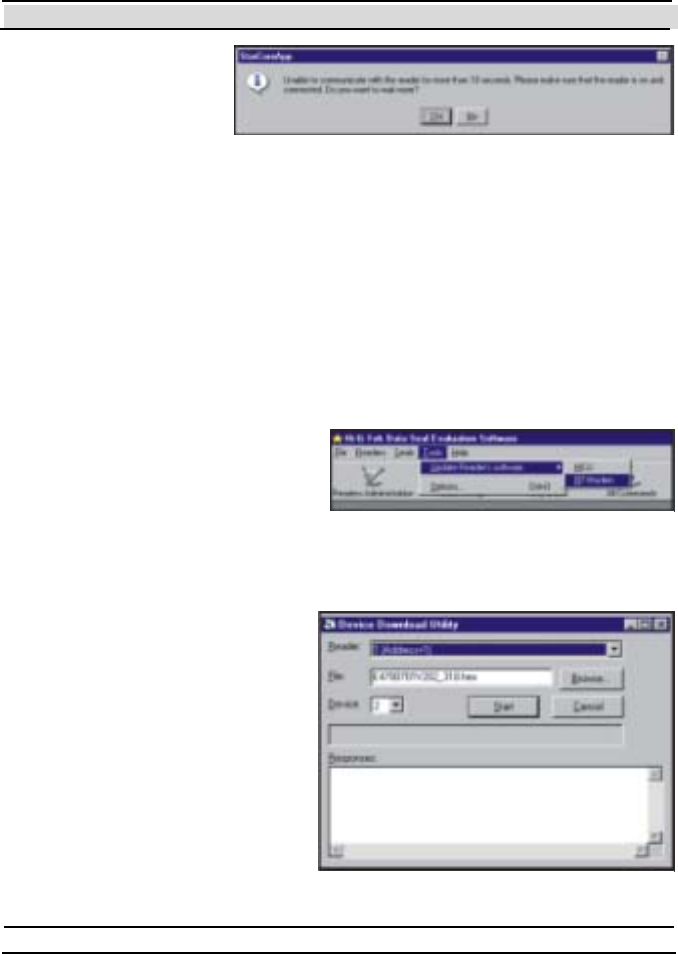

After the process has
been completed
successfully, an
appropriate message
will appear, and the
DataReader will re-
initialize itself using the new software. T he re-initialization takes about 30
seconds in which the power LED of the DataReader alternates between red
and green, and at the end it should remain green. If it remains red or unlit,
see chapter 0 for troubleshooting.
7.7.3.2 RF Modem Dow nload Utility
To update the DataReader's RF Modem software do the following:
 Open the De vi ce Do wnlo a d
Utility window (shown in
Figure 7 -1 ) by choosing the
Tools menu, then the Update
Reader's Software ->RF
Modem item as shown in
Figure 7-1.
 Select t h e ap prop r iat e
Reader ID from the drop
down list . If t he appropriat e
Reader ID does not appear in
the drop down list, return to
the Re a de rs
Administration window and
add the DataReader as
described in sect ion 7.2.
 Type the full path and file
name of the updated
Figure 7-1
Figure 7-1
Figure 7-1
