Instruction Manual

PoE Power/Video/Data UTP Transceiver User Manual

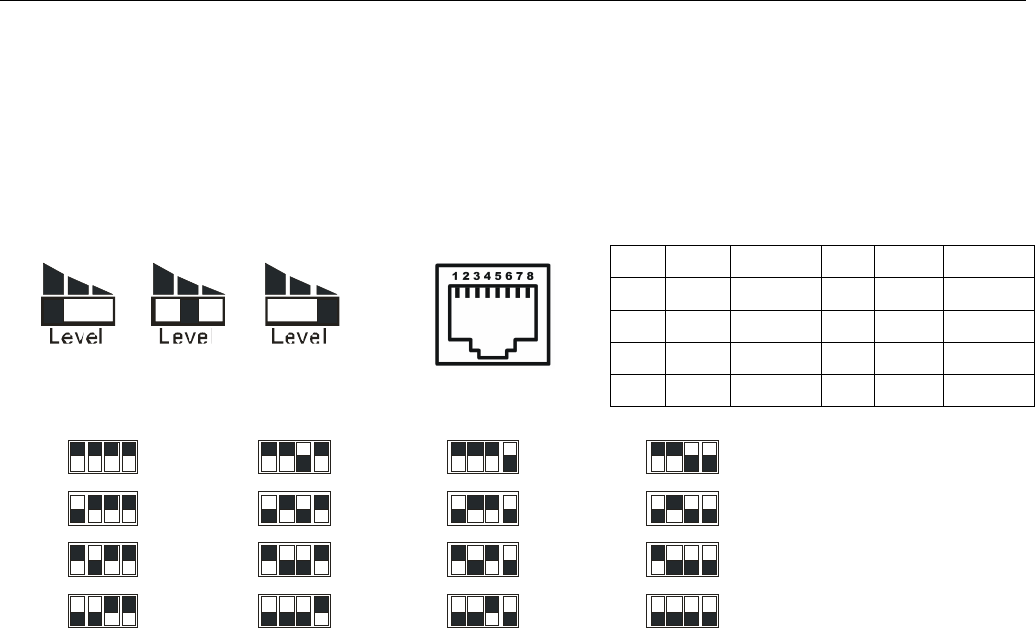

Act ive transmit ter gain set

>4000ft 4000-2000ft 0-2000ft

RJ45 jack instruction

Act ive receiver sharpness setting chart (suggest for best color video transmit distance)

1000ft

1327ft

1639ft

2000ft

2130ft

2458ft

2622ft

3000ft

3278ft

3442ft

3770ft

4100ft

4261ft

4590ft

4753ft

5000ft

DC36V 0.5A input power, so can use one 100W 36V/3A power adapter for 6 PoE Receiver.

Transceiver setting and indication

PoE PVD passive transceiver no need set gain, they have indication LED. Transmitter have power good LED, Receiver have load/unload

dual color LED.

PoE PVD active transceiver need set gain for different distance, Transmitter have power good (PG)/under voltage (UV) dual color LED,

Receiver have load/unload dual color LED, and they all have video in LED, when video input, LED will turn on.

Color

Function

Color

Function

1 W-O

Video+

5 W-B

Power+

2 O Video- 6 G Data-

3 W-G

Data+ 7 W-BR

Power-

4 B Power+

8 BR Power-
