B. LIQUID PRESSURE CONTROL
Outdoor fan motor speed control designed to regulate condenser head pressure at low
ambients by varying the air volume through the condenser. Has been tested and is avail-
able through the parts department.
C. LIQUID LINE SOLENOID VALVE
LIQUID LINE SOLENOID VALVE (24V) — Recommended for all split system applica-
tions, to prevent refrigerant migration during off cycles. See wiring connection (See
Figure 11). Solenoid to be located in liquid line close to air handler.

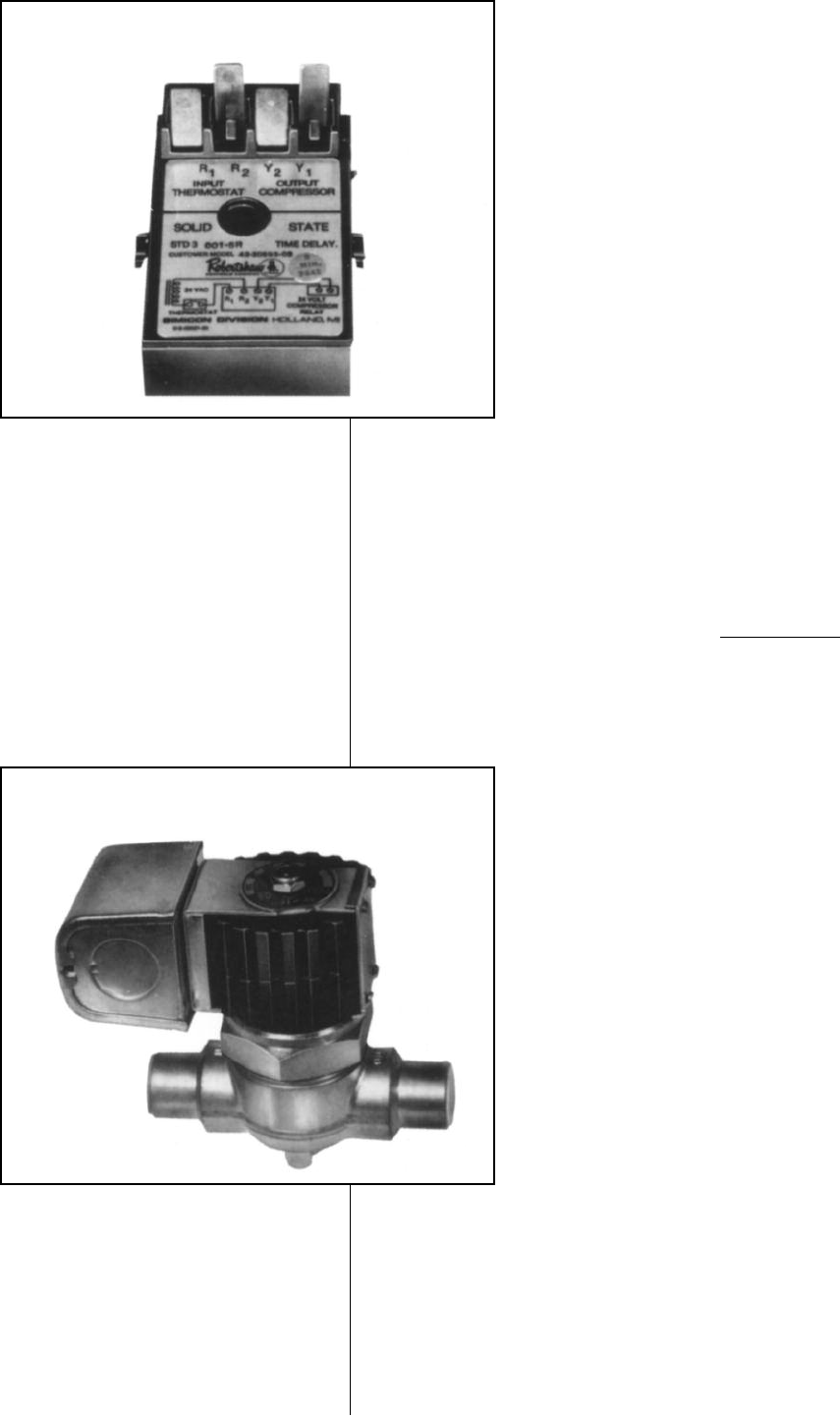

FIGURE 10
A
NTI-SHORT CYCLE TIMER
FIGURE 11
LIQUID LINE SOLENOID VALVE
D. SIGHT GLASS / MOISTURE INDICATOR
SIGHT GLASS — Allows viewing of the refrigerant. Bubbles may indicate a shortage of
refrigerant or a restriction in the liquid line. The color indicator shows relative moisture
saturation of the refrigerant. Its inclusion in the refrigerant piping is recommended. A
minimum of 12 hours after installation is required before attempting to determine if a
moisture condition within the system exists.
