User Guide

R
September 1, 2008
7019-205C
Page 45
Santa Fe Pellet Insert
Item No. Service Parts, Alphabetical Order Part No.
32 Hooper Lid Hinge Assembly 7019-023
8 Igniter, Loop (Heating Element) SRV7000-462
25 Junction Box & Wire Harness 7019-166
Log, Front, Right 7001-230
Log, Front, Left 7001-231
Log, Rear, Right 7001-232
Log Rear, Left 7001-233
Log, Top 811-0900
15 Outer Skin, Left & Right (interchangeable) 7019-100
Power Cord 812-1180
Scraper Repair Kit SCRAPER-SFI
1 Screw 5/16-18 x 1-1/2 SH, Door Handle Set Screw, Pkg of 24 7000-101/24
17
Snap Disc, #1, 110
o
F., Convection Blower 230-1220
27
Snap Disc, #2, 250
o
F., Fuel Delivery Interrupt, Automatic Reset SRV7000-268
16
Snap Disc, #3, 250
o
F., Burn Back Protector, Manual Reset 230-1290
9
Thermocouple, 14 inches 812-4470
10
Thermocouple Clamp 7001-203
6
Thermocouple Cover 812-1322
53
Thumb Screw for Igniter, Pkg of 24 7000-223/24
Trim Only, Panel, Small, Black Nickel, Set 7019-026
Trim Only, Panel, Small, Gold, Set 811-0710
Trim Only, Panel, Large, Black Nickel, Set 7019-027
Trim Only, Panel, Large, Gold, Set 250-4660
28
Vacuum Switch, Rectangular SRV7000-447
1
2
Item Description Part Number
1 Log, Rear, Left 7001-230
2 Log, Rear, Right 7001-231
3 Log, Front, Left 7001-132
4 Log, Front Right 7001-233
5 Log, Top (Optional) 811-0900

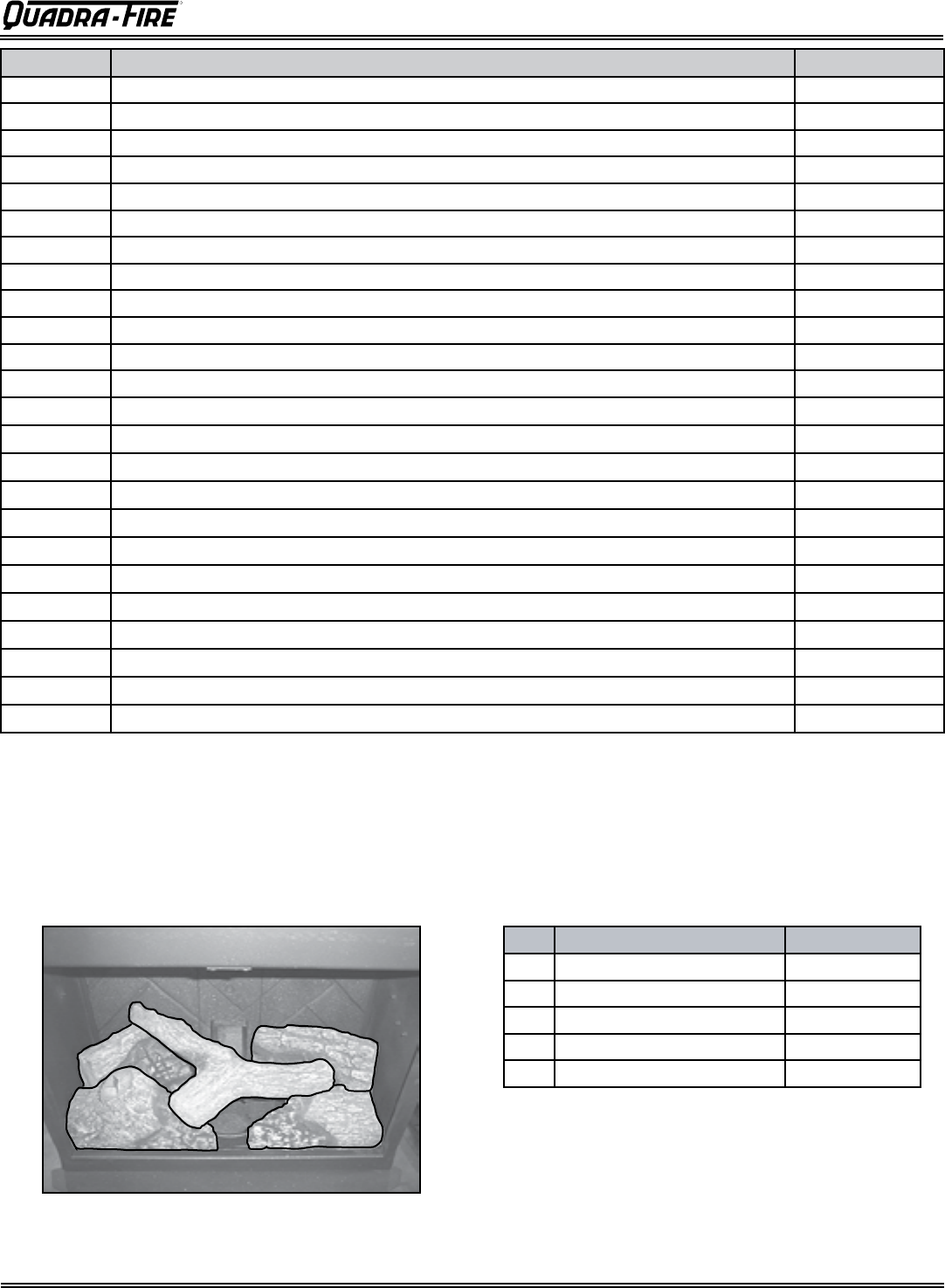

Figure 45.1
