Instructions / Assembly

Installation
Installation
Installing the AQL-CHEM2 or AQL-CHEM2-240 requires the following steps:
• Mount CO
2
tank using commercially available straps
• Attach the solenoid valve to the CO
2
tank
• Install the PVC check valve injector to the pool's return plumbing
• Plug the solenoid valve into the pigtail of the Aqua Rite Pro or Pro Logic pool control
• Configure the Aqua Rite Pro or Pro Logic to control the AQL-CHEM2(-240)
This manual assumes that the Hayward AQL-CHEM Chemistry Kit and the pH Dispense Pigtail
(included with AQL-CHEM) have already been installed. If not, this will need to be performed prior to
installation. Refer to the AQL-CHEM manual for installation instructions.
Mount CO
2
tank
Mount the CO
2
tank in an easily accessible location. Straps or brackets can be purchased from the
tank supplier and must be used for a secure installation.
Attaching the solenoid valve
The solenoid valve attaches to the CO
2
tank much like an outdoor gas grill attaches to a propane
tank. With the tank valve off, insert the included nylon washer and screw the fitting of the AQL-
CHEM2(-240) solenoid valve on to the CO
2
tank. If the nylon washer is lost or destroyed, a spare is
provided. Keep the tank's valve off until the entire installation is complete.

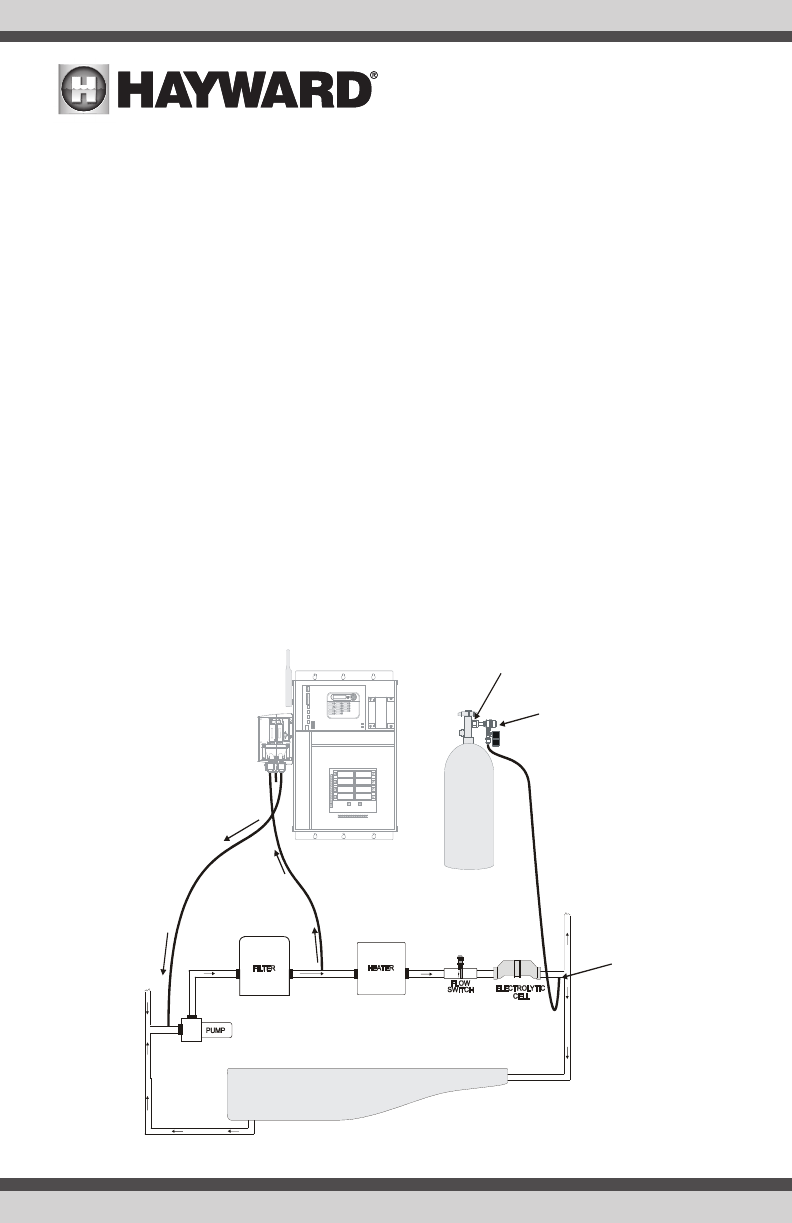

FROM POOL
FROM SPA
RETURN
TO POOL
RETURN
TO SPA
POOL
pH dispense kit
Insert nylon washer
before attaching to tank
PVC check valve
mounted to
underside of pipe
