SYSTEM SETUP AND TEARDOWN

2.5.2 RF-7800B-DU024 Fixed/Semi-fixed Installation

The Land Portable BGAN Terminal can be mounted on a pole or flat surface (such as a wall or roof) using the Fixed

Mount Kit, 12091-4150-01. See Figure 2-10. This kit includes a universal pole mount, incline bracket, bubble level

indicator and holder, pole ground cable, and four terminal mounting screws. Items required to mount the universal

pole mount to a structure are customer furnished. Proper installation ensures that the BGAN terminal is always

correctly pointed at the satellite. The BGAN terminal can then be left alone for an extended period of time without

having to be re-pointed or set-up. The fixed mount kit accessory can be re-used to install the BGAN terminal in

different locations.

When mounted in a location where access to the BGAN terminal may not be straightforward (for example, mounted

high on a wall), set the BGAN terminal to recover automatically after a power outage. To permit this fixed

installation, modify the following BGAN terminal properties using the embedded Web interface. See Figure 4-2.

 Auto Power On mode is enabled

 Bypass Antenna Pointing is enabled

The following items are found in the Fixed Mount Kit, 12091-4150-01. Mount to a suitable surface.

 Fixed Mount Screws

 Mounting bracket and shaft

 Level

 Grounding strap

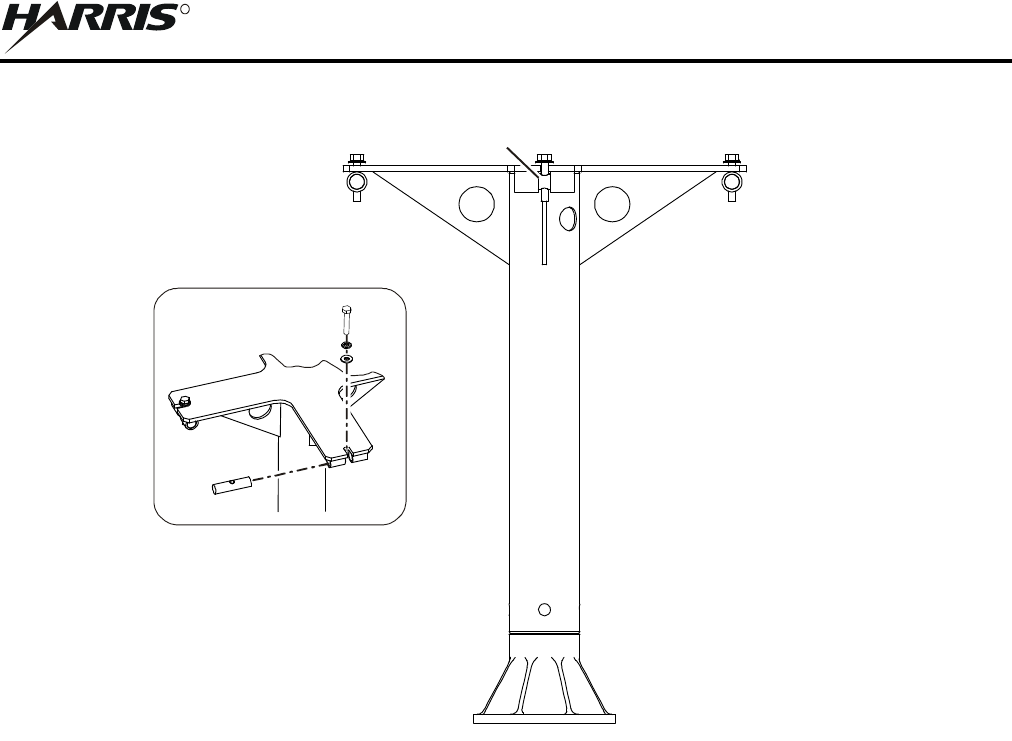

Figure 2-9. Pole Mount Option

DETAIL

(4 PLACES)

SEE DETAIL

CL-0365-4200-0011
