2.4.1 Installing USIM in RF-7800B-DU024
Perform the following procedure to install the USIM/SIM in RF-7800B-DU024:
a. Position the BGAN terminal so that the bottom surface is facing you.
b. Remove the four screws and the USIM plate to access the USIM card holder. See Figure 2-3.
c. Put your index finger on the USIM holder and rotate counterclockwise to open. See Figure 2-4.
d. Lift the USIM card holder up in order to place the USIM card in the holder. See Figure 2-5.
NOTE
Do not bend or damage the USIM/SIM. Damaged contacts
may cause the card not to work.
CAUTION
USIM cards are sensitive to electrostatic discharges.
e. Install the USIM card in the card holder making sure the gold contacts are facing down. The angled part
of the USIM is in the upper right-hand corner. See Figure 2-5.
f. With the card in place, push the holder down and with your index finger, rotate the locking mechanism
clockwise to lock card in place. See Figure 2-6.
g. Put the USIM plate back on and tighten the four screws. See Figure 2-3.

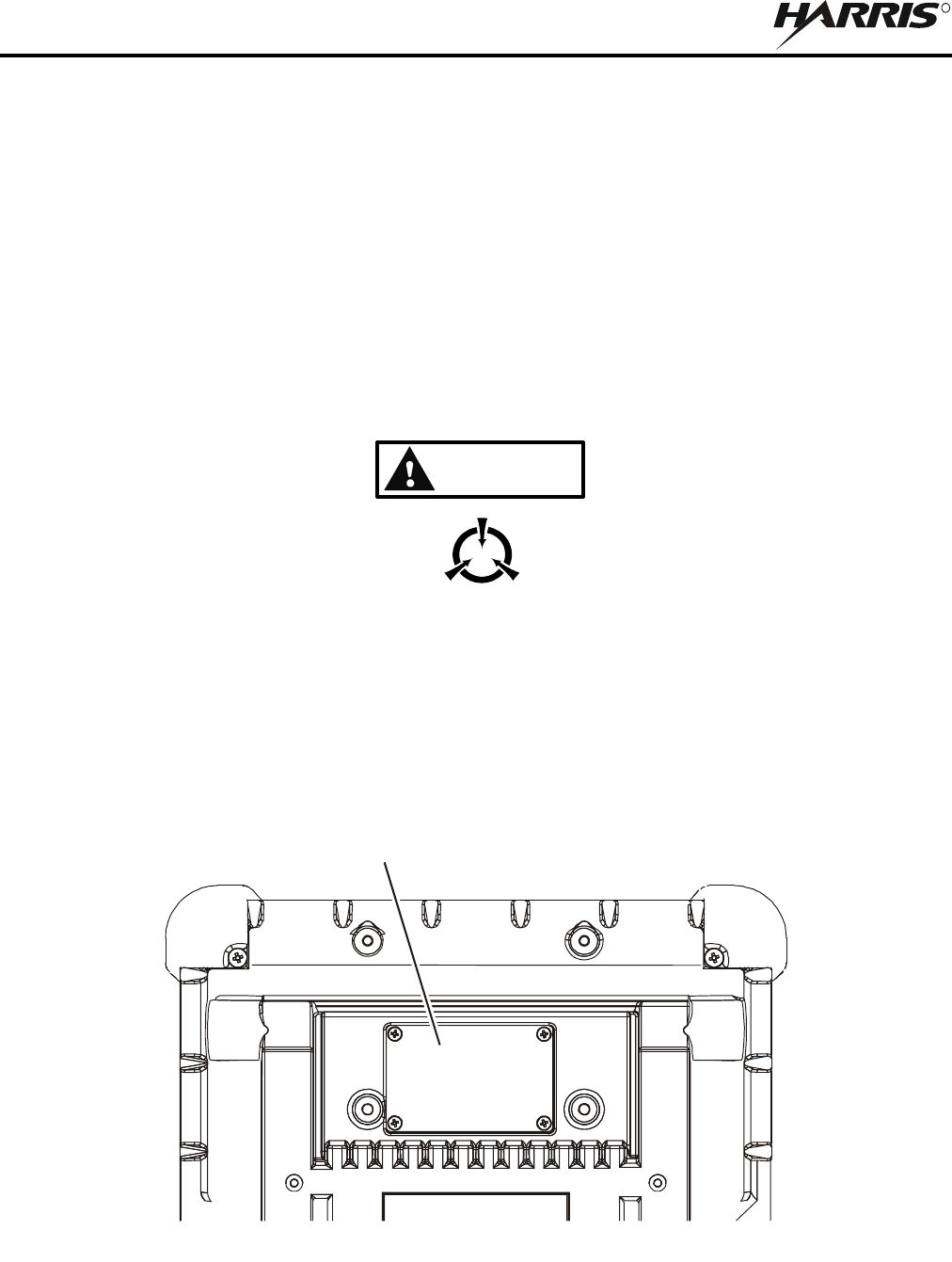

Figure 2-3. Accessing the USIM Card Holder on RF-7800B-DU024
CL-0365-4200-0006
USIM CARD
HOLDER
