USIM PIN Status: Displays the PIN status as Ready if a valid PIN code is entered. The PIN code is used to unlock
the USIM every time the terminal is powered up or reset. Entering a PIN code into the Web interface stores the PIN
in the terminal (see Figure 4-2). If the USIM requires a PIN code at startup, the terminal will use the stored PIN.
USIM APN Name: Displays the default Access Point Name (APN) that has been provisioned on the USIM card.
Some USIM cards may have multiple APN's provisioned on them.
MS-ISDN 1 thru 4: Every USIM card has four separate Mobile Subscriber Integrated Services Digital Network
(MS-ISDN) numbers if the USIM has been provisioned for these services.
 MS-ISDN 1 is for 4 k Speech
 MS-ISDN 2 is for 3.1 kHz Audio (facsimile)
 MS-ISDN 3 is for 64 k Unrestricted Digital Information (UDI) data
 MS-ISDN 4 is for 56 k Restricted Digital Information (RDI) data
Extract System Log: Click this button to automatically extract a system log from the BGAN terminal and save the
file to a location on the computer for debugging purposes. This file can be e-mailed to Harris directly for fault
analysis.
Restore factory Defaults: Click this button to restore the BGAN terminal back to factory defaults and delete any
parameters that have been changed. Try all possible debug procedures before using this feature. Contact Harris for
additional help if necessary.

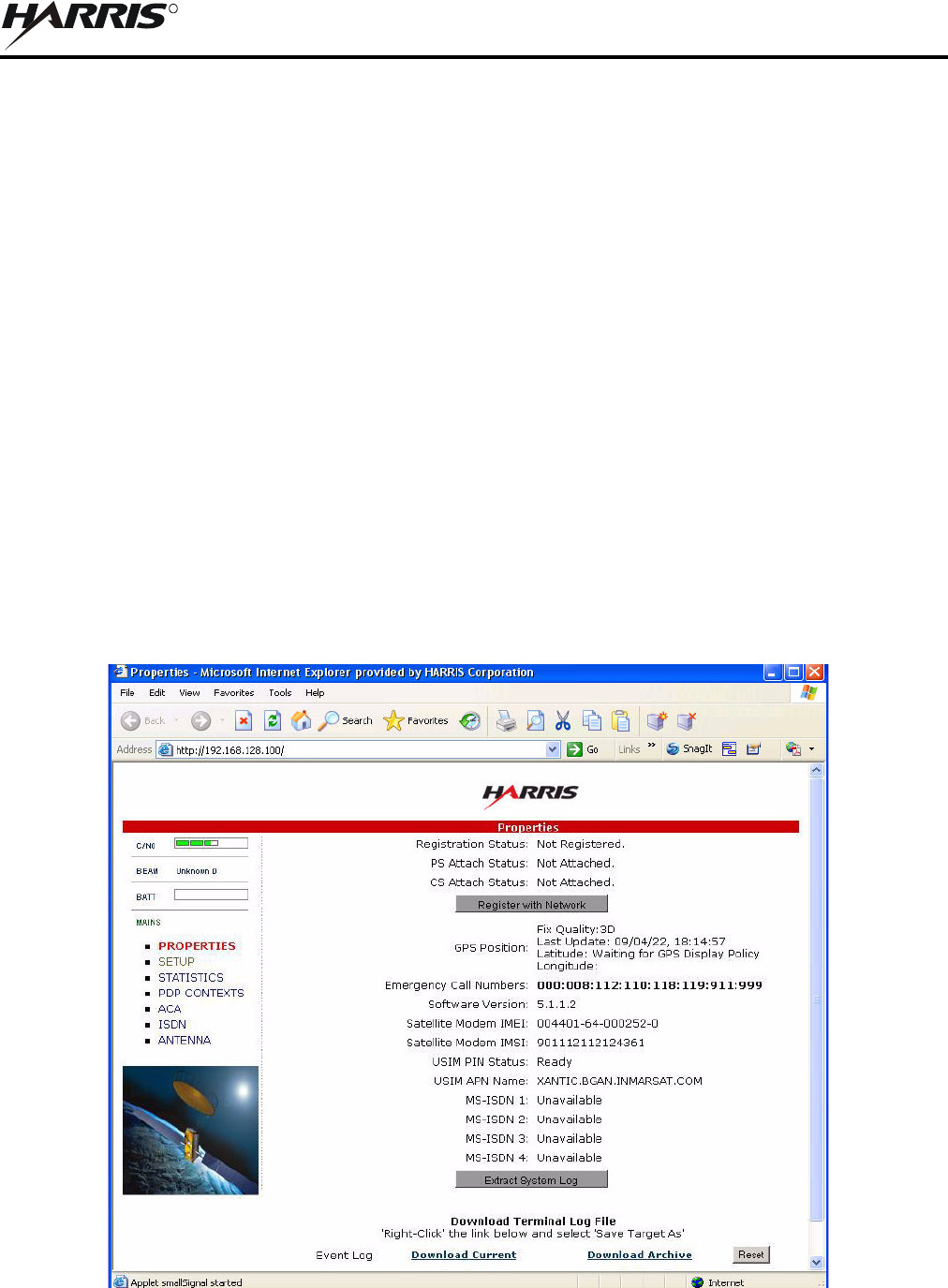

Figure 4-1. BGAN Terminal Properties
