Optionally, for RF-7800B-VU104, use the 12043-0840-A010, or -A015 Cable Assembly, BGAN DC Power to 4
Leads as follows: red (+dc), black (ground), orange (power control signal), brown (ground). See Figure 3-12. The
Power Control Signal allows the BGAN terminal to be remotely powered on/off. Connecting the power control
signal to ground will turn the power on to the BGAN terminal.
3.3.2.4 Connect BGAN Terminal Power to 26 VDC Power Supply
Connect BGAN terminal to a 26 VDC power supply (RF-505X-PS) using 12043-0841-A006, or -A015 BGAN DC
Power to 26 VDC. Connect power to RF-505X-PS J15 or J16. See Figure 3-13.
Optionally, for RF-7800B-VU104, use the 12043-0842-A006, or -A015 Cable Assembly, BGAN DC Power to 26
VDC with remote On-Off as follows: P2 (26 VDC Power Supply), orange (power control signal), brown (ground).
This can also be used with the 12043-0845 Power Extension Cable (extension cable plugs into BGAN power). See
Figure 3-14. The power control signal allows the BGAN terminal to be remotely powered on/off. Connecting the
power control signal to ground will turn the power on to the BGAN terminal.

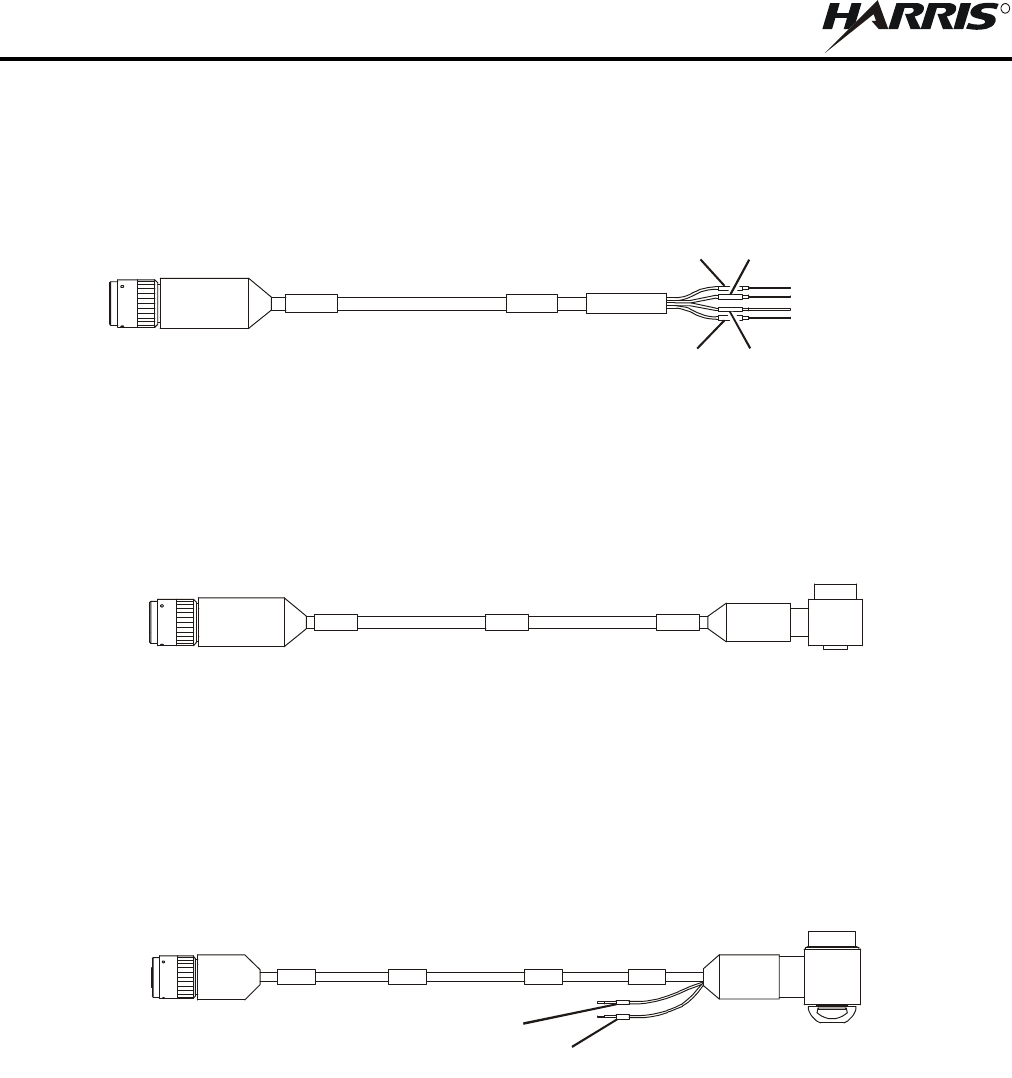

Figure 3-12. Cable Assembly, BGAN DC Power to 4 Leads, 12043-0840-A0xx
Figure 3-13. AC/DC Power Supply Cable (RF-505X-PS), 12043-0841-A0xx
Figure 3-14. BGAN DC Power to 26 VDC/Remote On/Off, 12043-0842-A0xx
+DC (RED)
GROUND (BLACK)
A
CTIVATION (ORANGE)
GROUND (BROWN)
CL-0365-4200-0029
CL-0365-4200-0030
CL-0365-4200-0031
ACTIVATION (ORANGE)
GROUND (BROWN)
