3.3.2 Power Connections
Connect the BGAN terminal to a power source as described in this section. Each of these power connection options
can be extended using the BGAN DC Power Extension, 12043-0845-A015, -A025, or -A050 (includes activation).
For power sources which do not have built-in current limiting or fuses, it is suggested to procure the F03-0008-906
Fuse Holder along with the F15-0012-003 Automotive Fuses (Automotive Blade, 5 A 32 V).
3.3.2.1 Connect BGAN Terminal Power to Commercial Vehicle 12 VDC
Connect BGAN terminal to a vehicle using 12043-0843-A015 Cable Assembly, BGAN, DC Power to Vehicle 12
VDC. See Figure 3-9.
3.3.2.2 Connect BGAN Terminal Power to AC to DC Power Supply
Connect BGAN terminal to a power supply using 12043-0844-A1 Power Supply Assembly, BGAN, AC to DC. See
Figure 3-10. Plug kit (not shown) includes five black plugs. Refer to Paragraph 2.5.3.
3.3.2.3 Connect BGAN Terminal Power to Battery
Connect BGAN terminal to a battery using 12043-0846-A010, or -A015 Cable Assembly, BGAN DC Power to 2
Leads. See Figure 3-11.

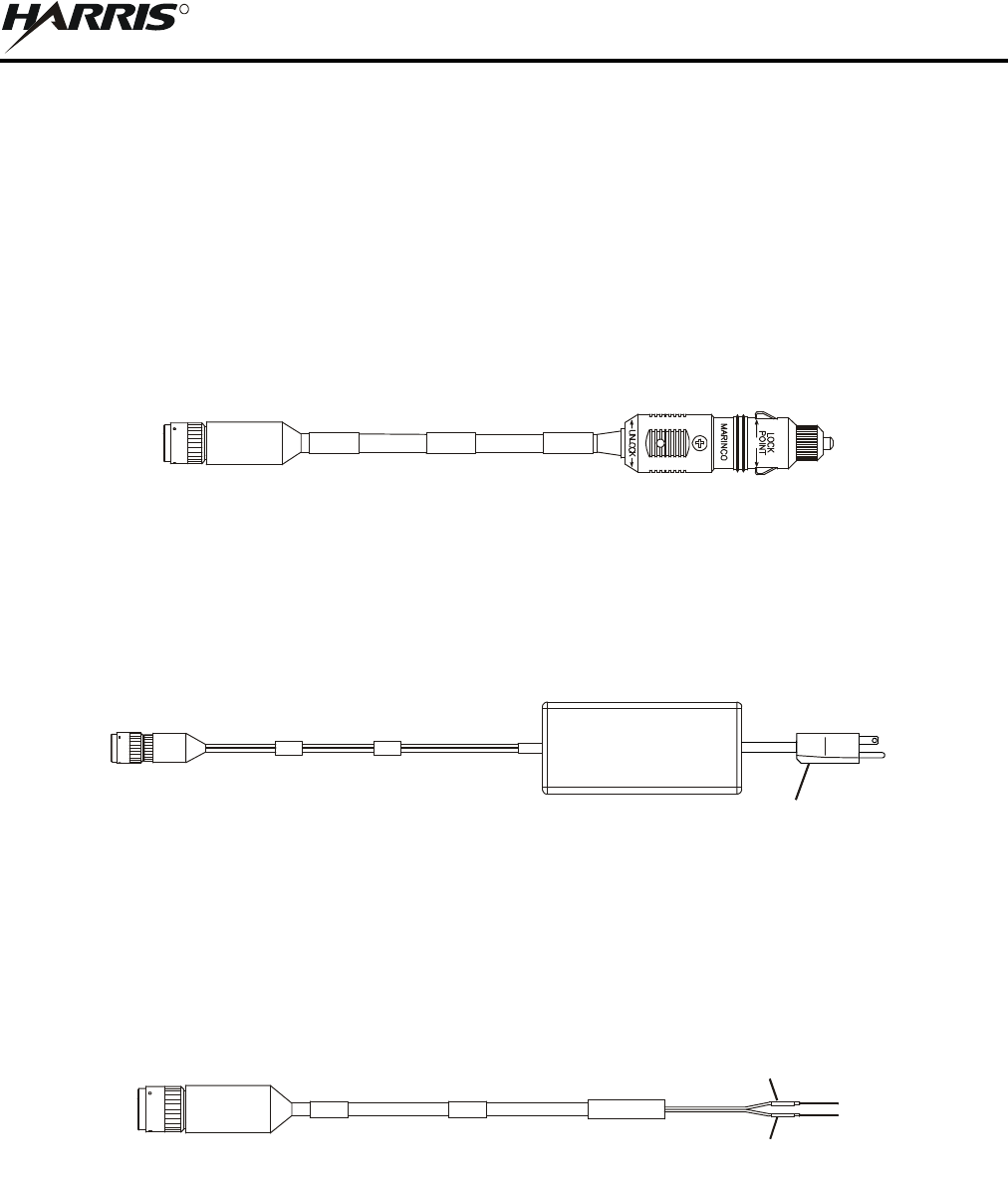

Figure 3-9. BGAN, DC Power to Vehicle 12 VDC, 12043-0843-A015
Figure 3-10. BGAN, AC to DC Power Supply Assembly, 12043-0844-A1
Figure 3-11. Cable Assembly, BGAN DC Power to 2 Leads, 12043-0846-A0xx
CL-0365-4200-0026
CL-0365-4200-0027
ADAPTORS
NOT SHOWN
+DC (RED WIRE)
GROUND (BLACK WIRE)
CL-0365-4200-0028
