3.3.1.2 Connect Data by USB
Connect the BGAN terminal to the computer USB port using a USB cable option. Use Standalone Ethernet, ISDN,
USB Cable, 12043-0832-A010, or Standalone USB and ISDN Cable, 12043-0836-A010 (see Figure 3-5). On first
use of the USB port, the computer will detect that new USB hardware has been connected. Follow the installation
instructions for the USB Local Area Network (LAN) LINK driver software.

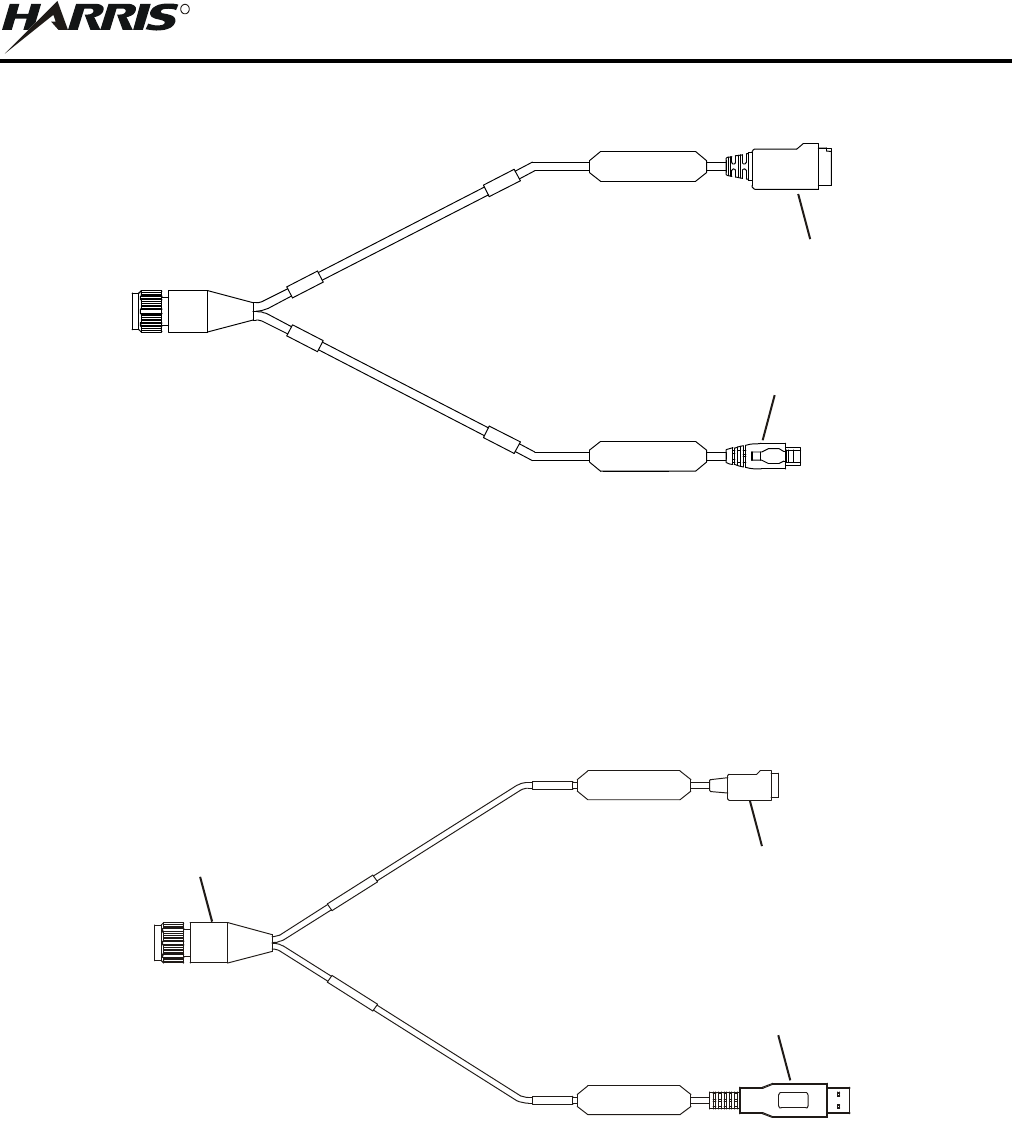

Figure 3-4. Standalone Ethernet and ISDN Cable, 12043-0834-A010 (Optional)
Figure 3-5. Standalone USB & ISDN Cable, 12043-0836-A010 (Optional)
