OPERATION

3.3.1 Data Connections

Make a data connection to a computer, radio, an Internet Protocol (IP) encryption device, or an ISDN device.

The Data Extension Cable for Ethernet & ISDN, 12043-0837-A0xx, can be used to extend the terminal data

connection out 15, 25, or 50 feet (4.57, 7.62, or 15.24 meters).

 Ethernet

 Universal Serial Bus (USB)

 Integrated Services Digital Network (ISDN)

3.3.1.1 Connect Data by Ethernet

Connect the BGAN terminal to the computer Ethernet port using an Ethernet cable supplied with the BGAN terminal

or another Ethernet cable option.

 See Figure 3-3 for BGAN Ethernet Cable, 12043-0833-A010 (supplied with BGAN terminal).

 Standalone Ethernet, ISDN, USB Cable, 12043-0832-A010 (optional).

 See Figure 3-4 for Standalone Ethernet and ISDN Cable, 12043-0834-A010 (optional).

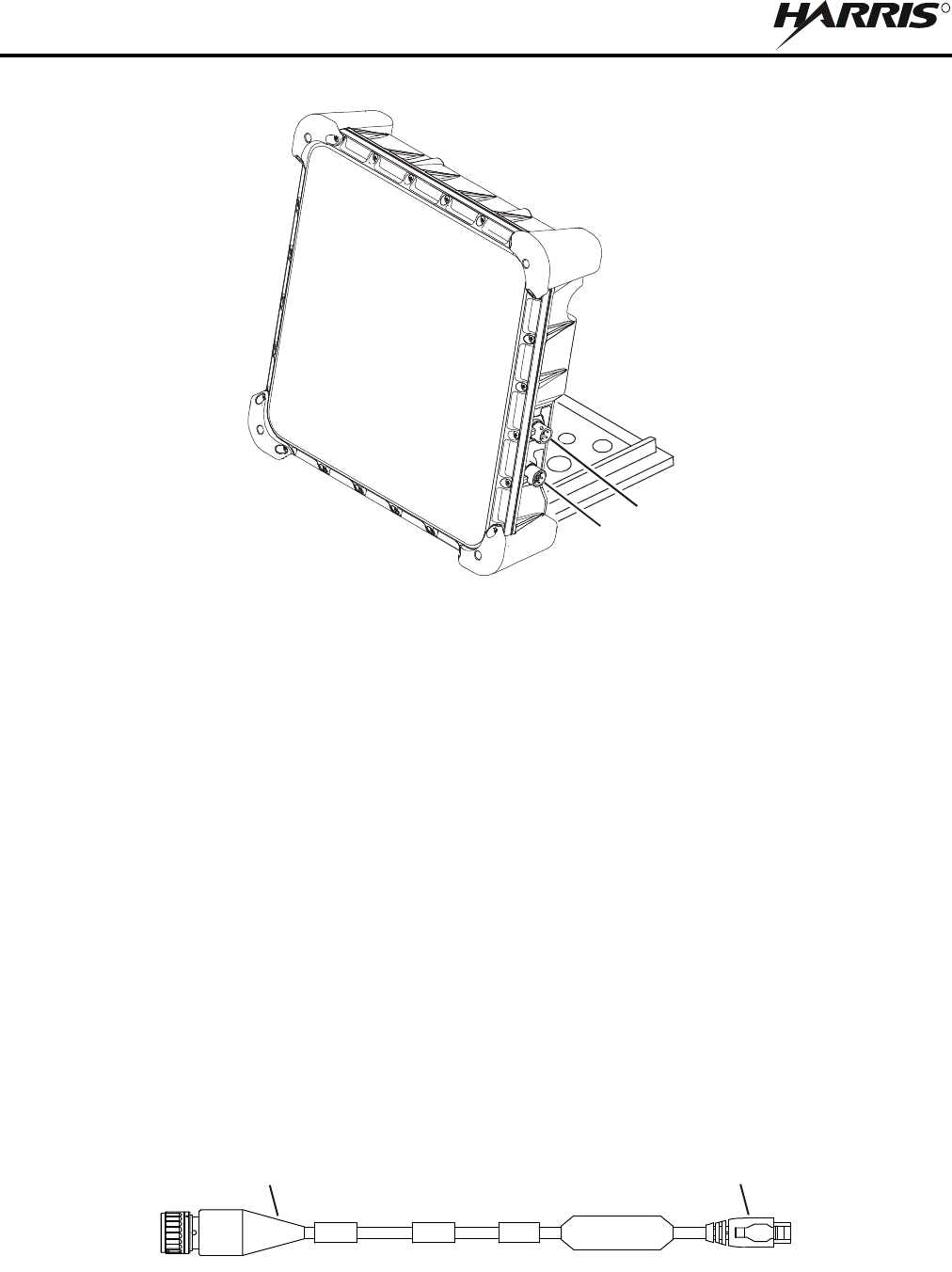

Figure 3-2. RF-7800B-DU024 Connectors

Figure 3-3. BGAN Ethernet Cable, 12043-0833-A010

CL-0365-4200-0016

POWER

DATA

ETHERNET

CONNECTOR

RF-7800B DATA

CONNECTOR

CL-0365-4200-0017
