User Manual Part 2

3-1

RF-7800B

OPERATION

CHAPTER 3

OPERATION

3.1 INTRODUCTION

The Broadband Global Area Network (BGAN) terminal contains an integrated Global Positioning System (GPS)

receiver that is used to provide location information to the BGAN system. GPS location information is required to

is powered up.

The GPS antenna is located in the main antenna. For optimum GPS signal reception, make sure the

%*$1Terminal

LVSlaced in a horizontal position pointed towards the sky. Since the GPS receiver needs to see at le

ast three satellites,

it should have

visibi

lity of a lar

ge part of the sky without obstructions from buildings, mountains or

trees. So it might

be necessary to take the BGAN terminal out to a clear space to obtain a new GPS location. It may be possible to

obtain a new GPS location in a less favorable circumstance, but the time to get the fix may be longer.

3.2 OPERATIONS TASK SUMMARY

Perform the following task to begin using the BGAN terminal that has been setup with a Subscriber Identity Module

(SIM) card.

 Make cable connections

 Position the Land Portable BGAN Terminal (RF-7800B-DU024)

 Turn on the BGAN terminal and use pointing tones to locate satellite

 Verify connection to the BGAN network

RF-7800B-VU104 has no controls or indicators.

RF-7800B-DU024 has a power switch on the side .Refer to Paragraph 3.5. Switch positions are: Off, On, and On

with Pointing Tones. On with Pointing Tones is used to accurately point the terminal toward the satellite for optimal

data throughput.

3.3 MAKE CABLE CONNECTIONS

Connectors for RF-7800B-VU104 are shown in Figure 3-1. Connectors for RF-7800B-DU024 are shown in

Figure 3-2. Connect the power and data cables to the BGAN terminal. Engage the connector locking mechanism to

secure the cable to the BGAN terminal.

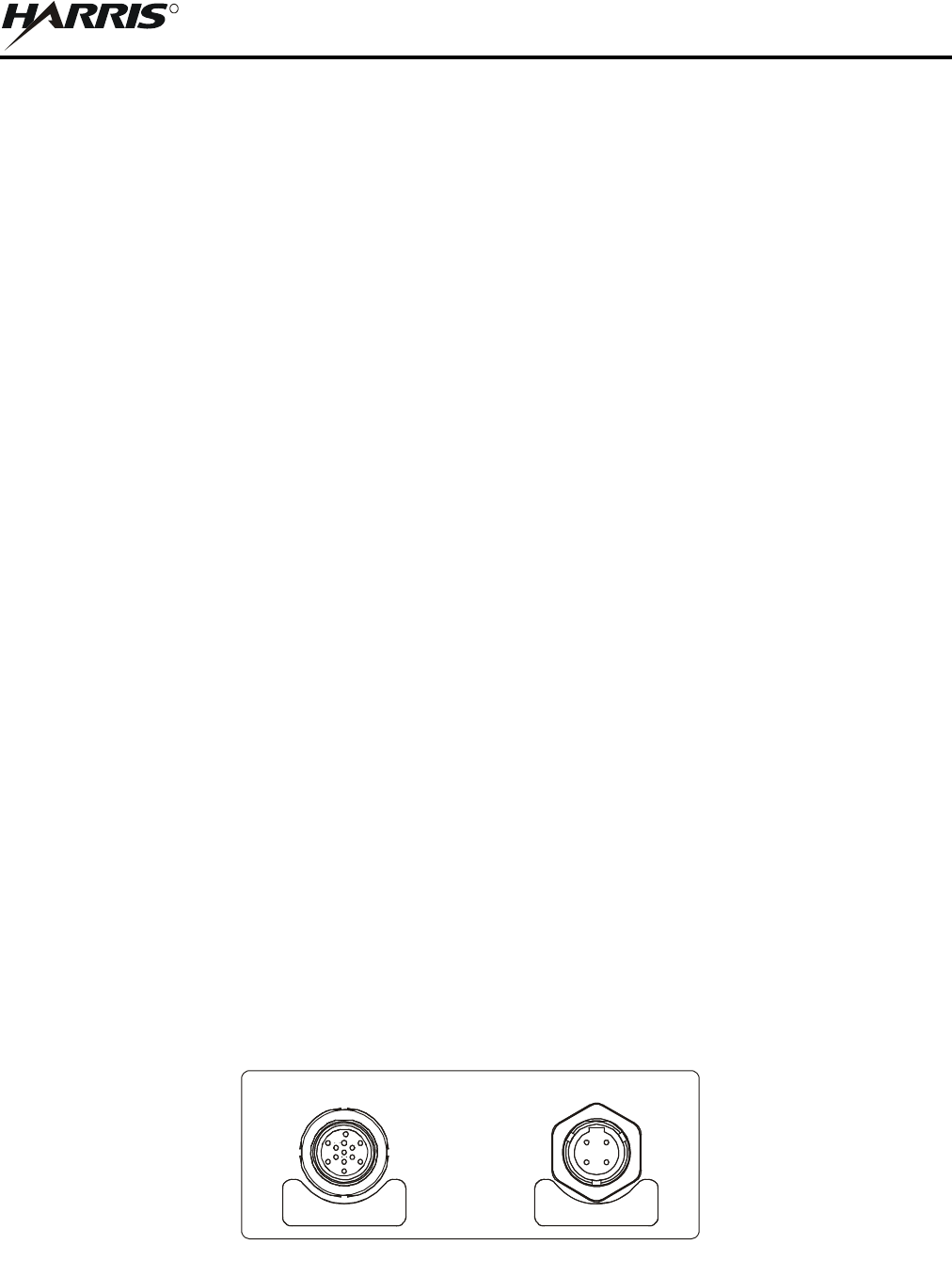

Figure 3-1. RF-7800B-VU104 Connectors

DATA DC POWER

CL-0365-4200-0015
