User's Manual

2
INTRODUCTION
The JBL
®
OnBeat Xtreme
™
speaker dock provides the ultimate in high-
quality sound for your iPod, iPhone, iPad or other Bluetooth
®
-enabled
devices. Built-in Bluetooth technology lets you play and control your
music wirelessly from anywhere within a 30-foot radius. You can
wirelessly stream high-quality audio from Internet radio and even handle
phone calls. The JBL OnBeat Xtreme unit’s rotating dock connector lets
you orient your iPod, iPhone, or iPad device with its screen in portrait or
landscape mode, and the included USB cable connects the JBL OnBeat
Xtreme dock to your computer so you can charge and synchronize your
iPod, iPhone, or iPad device with your iTunes library.
COMPATIBILITY
The JBL OnBeat Xtreme system is compatible with most Bluetooth-
enabled devices, music players, cell phones and laptops. Enabled with
Bluetooth A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/
Video Remote Control Profile) and HFP (Hands-Free Profile), the system
can stream high-quality sound and serve as a speakerphone. The stereo
Aux connection also lets you enjoy high-quality audio from a variety of
devices such as MP3 and CD players, desktop computers (all platforms),
laptops and satellite radio tuners.

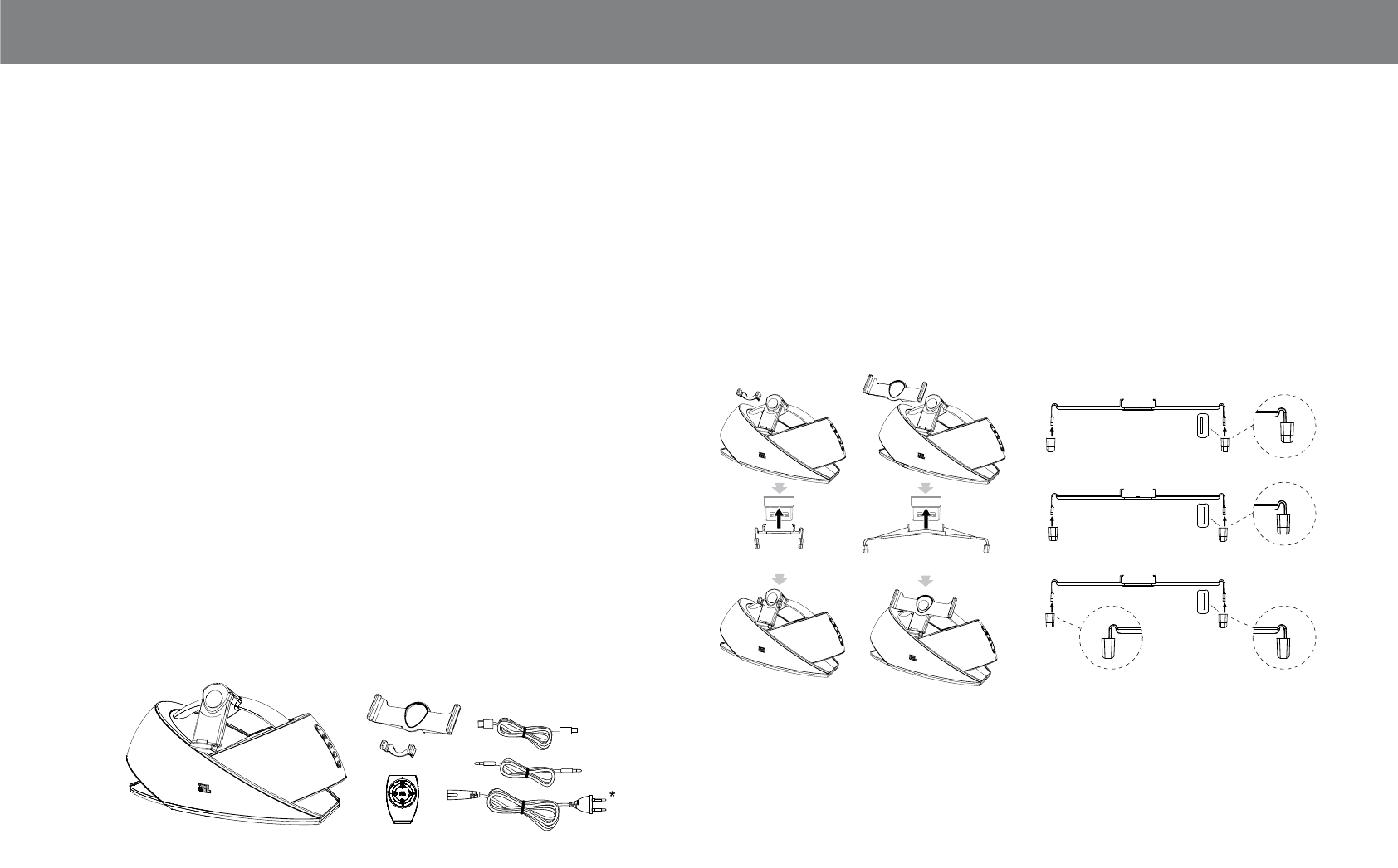

INCLUDED ITEMS
Carefully unpack your speaker dock, and confirm that all the items shown
here are included: JBL OnBeat Xtreme speaker dock, AC power cord*,
remote control, iPod touch/iPhone adapter clip, iPad adapter clip, USB
cable and 3.5mm stereo audio cable.
*AC cord varies by region
CONNECTIONS
ATTACH THE iPod/iPhone/iPad ADAPTER CLIP
Your JBL OnBeat Xtreme speaker dock includes two adapter clips: one
for an iPod touch/iPod classic/iPhone device, and another for an iPad
device (NOTE: the iPod 5G and iPod nano models do not require an
adapter clip.)
Attach the appropriate adapter clip to the JBL OnBeat Xtreme unit as
shown below. Rotate the rubber end caps as shown to accommodate
different model iPad devices and units with third-party skins.
iPod touch/iPhone
Bend Clip
Slightly
Bend Clip
Slightly
For iPad 2 with Smart Cover
and for Units with Third-Party Skins
iPad
For iPad 1
For iPad 2
