7.
With assistance, turn the frame upside down.
8.
Attach the Right Spring Hanger (26) to the
Front Right Side Rail (27) using two M10
x
20
Bolts
(31) and M10 Nuts (33).
(See Figure E.)
9.
Attach the Left Spring Hanger (17) to the Front Left
Side Rail (15) using two M10
x
20 Bolts (31) and M10
Nuts (33).
Right Spring Hanger (26)
Rear Right Side Rail (22)
Front Right Side Rail (27)
(25,33)
(25,33)
(31,33)
(7,33)
(31,33)
10.
Attach the Right Spring Hanger (26) to the
Rear Right Side Rail (22) using one M10
x
30
bolt (7), two M10
x
25 Carriage Bolts (25) and
three M10 Nuts (33).
(See Figure E.)
11.
Attach the Left Spring Hanger (17) to the Rear
Left Side Rail (20) using one M10
x
30 Bolt (7),
two
M10
x
25 Carriage Bolts (25) and three
M10 Nuts (33).

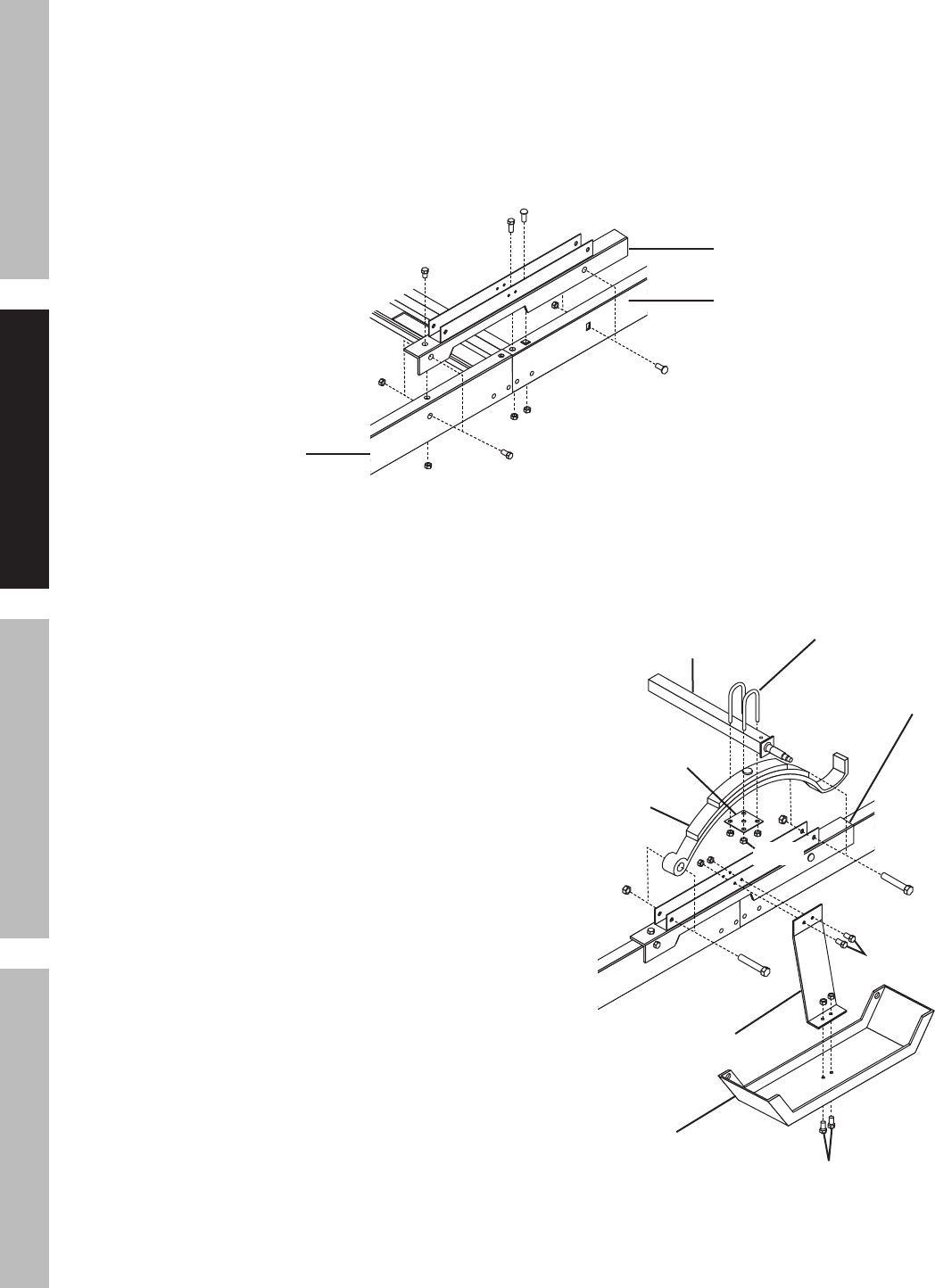

Figure
E:
Attaching Spring Hanger (Right Side View)
12.
Attach a Fender Bracket (9) to the Right
Spring Hanger (26) using two M10
x
20 Bolts
(31) and M10 Nuts (33).
(See Figure F.)
13.
Attach a Fender Bracket (9) to the Left
Spring Hanger
(17) using two M10
x
20
Bolts (31) and M10 Nuts (33).
14.
Attach a Fender (18) to the Right Fender
Bracket using M10
x
20 Bolts (31) and
M10 Nuts (33).
(See Figure F.)
15.
Attach a Fender (18) to the Left Fender Bracket
using M10
x
20 Bolts (31) and M10 Nuts (33).
16.
On each side, place a Spring (8) on Spring Hangers
(17, 26) with the spring eyes forward. Insert two
M12
x
75 Bolts (16) through the Springs, and secure
the Bolts with M12 Nuts (35).
(See Figure F.)
17.
Place the Axle (11) on top of the Springs (8). Align
depressions on Axle with protrusions on Springs.
Place Spring Plates (10) under Springs, and insert
U-Bolts (32) through the Axle, Springs and Spring
Plates. Secure the Axle with M10 Nuts (33) screwed
onto the U-Bolts.
(See Figure F.)
Figure
F:
Fender Assembly
Right Spring
Hanger (26)
U-Bolt (32)
(31,33)
(31,33)
(16,35)
(16)
(35)
Fender Bracket (9)
Spring (8)
Spring Plate (10)
Axle (11)
Fender (18)
U-Bolt (32)
Axle (11)
(33x4)
(33x4)
(33x4)
(33x4)
(33x4)
(33x4)
