Product manual

Page 6
For technical questions, please call 1-800-444-3353.
Item 69897
SAFETY OPERATION MAINTENANCEASSEMBLY
Assembly Instructions
Read the
ENTIRE
IMPORTANT SAFETY INFORMATION
section at the beginning of this
manual including all text under subheadings therein before set up or use of this Trailer.
Note:
For additional information regarding the parts listed in the following
For additional information regarding the parts listed in the following
pages,
refer to
Parts List and Diagram
on page
26.

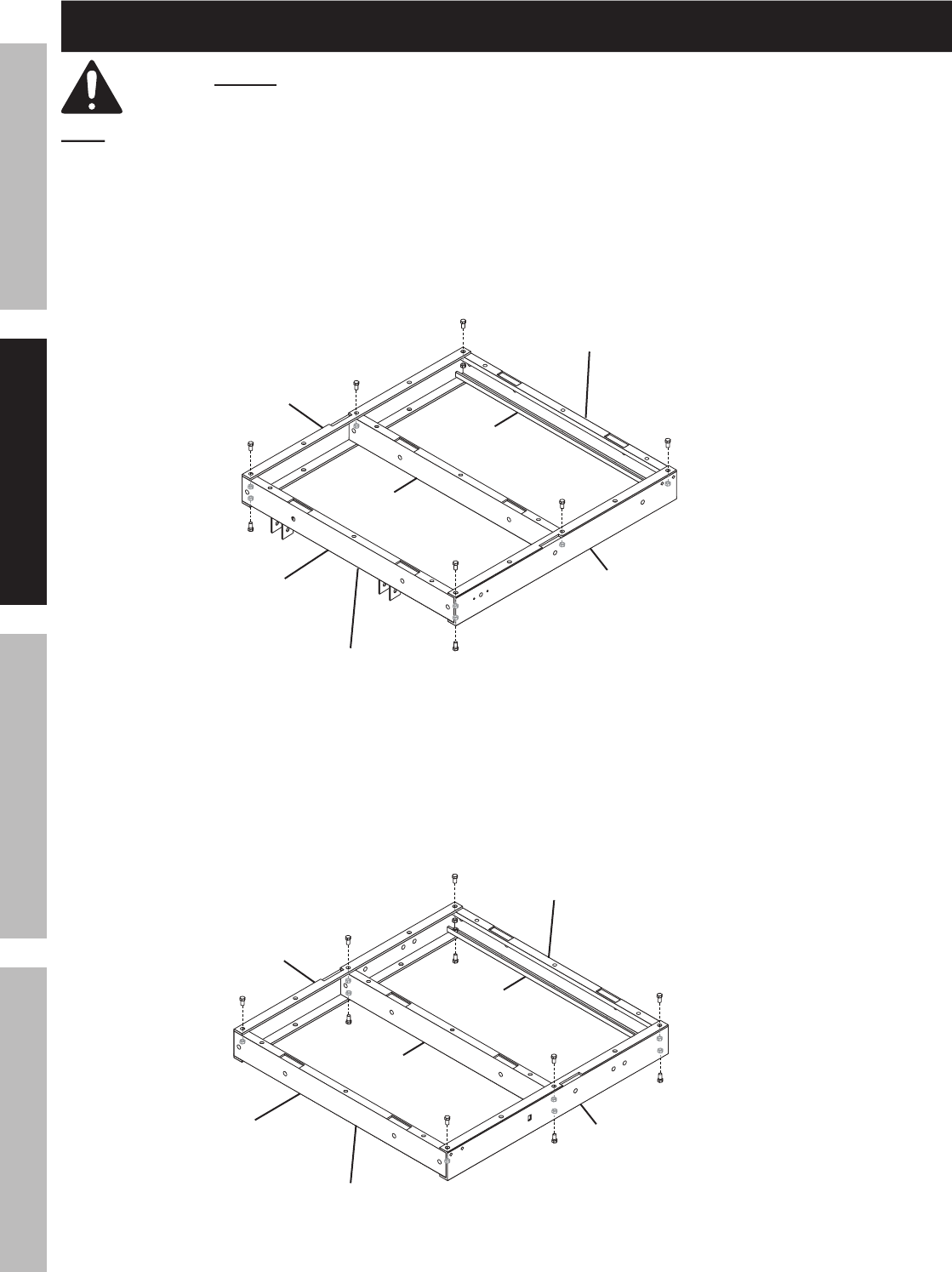

1.
Lay out the Front Left Side Rail (15), Front Right
Side Rail (27), Front Member (28) and two Cross
Members
(21). Assemble these parts using eight
M10
x
20 Bolts (31) and M10 Nuts (33).
(See Figure
A.)
FRONT OF TRAILER
Front Left Side Rail (15)
Front Right Side Rail (27)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
Front Member (28)
Cross
Member (21)
Cross
Member (21)
TO CENTER OF TRAILER
Figure
A:
Front Bed Rail Assembly
2.
Lay out the Rear Left Side Rail (20), Rear Right Side
Rail (22), and three Cross Members (21).
Assemble these parts using ten M10
x
20 Bolts (31)
and M10 Nuts (33).
(See Figure
B.)
Rear Left Side Rail (20)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
(31,33)
Rear Right Side Rail (22)
Cross Member (21)
REAR OF TRAILER
Cross
Member (21)
Cross
Member (21)
TO CENTER OF TRAILER
Figure
B:
Rear Bed Rail Assembly
