SAFETY OPERATION MAINTENANCEASSEMBLY
2.
Attach the Side Rails and Front End/Back End Rails
to the Stakes, using
3/8"
x
3-3/8"
Cross
Head
Bolts,
3/8" Flat Washers, and 3/8" Nuts.
3.
Attach the Connecting Plates to the
Side
Rails and Front End/Back End Rails,
using
3/8"
x
1-3/4"
Cross Head Bolts and 3/8" Nuts.
3/8" NUT
3/8" SPRING
WASHER
3/8" FLAT
WASHER
WASHER
3/8" X 1-3/4"
CROSS HEAD BOLT
3/8" NUT
3/8" SPRING
WASHER
3/8" FLAT
WASHER
3/8" SPRING
WASHER
3/8" FLAT
WASHER
3/8" X 3-3/8"
CROSS HEAD BOLT
3/8" X 2-3/8"
3/8" X 2-3/8"
BOLT
CONNECTING
PLATE
FRONT END
FRONT END
RAIL
BACK END
RAIL
SIDE RAIL
SIDE RAIL

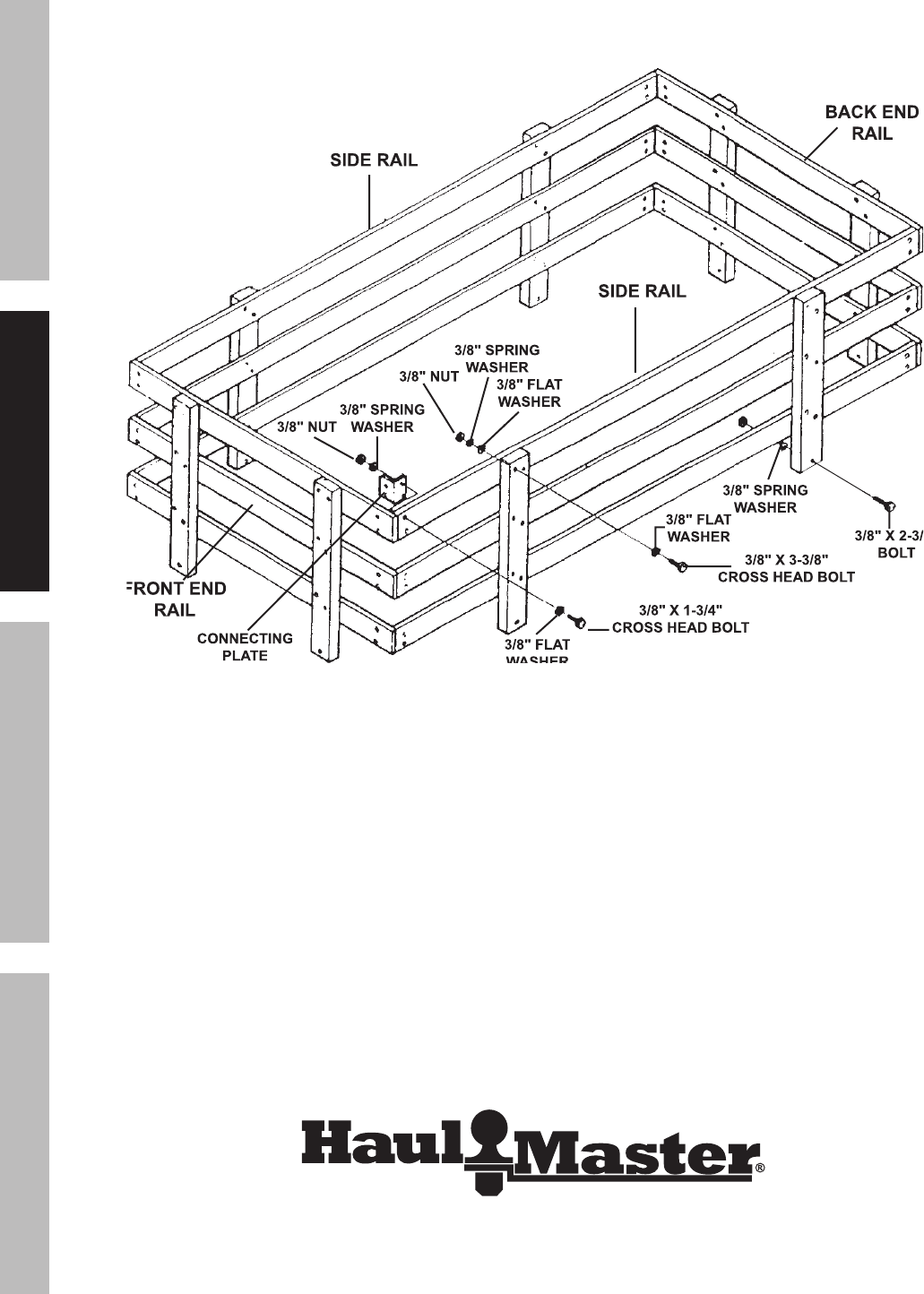

Figure
M:
Stake Assembly
