Product manual

Page 15
For technical questions, please call 1-800-444-3353.
Item 69897
SAFETYOPERATIONMAINTENANCE ASSEMBLY
Optional Rail Installation (not included)
Minimum Required Parts:
a.
Qty. 8
Qty. 8
:
1.6" x 3.5" x 27" wood strips (not included).
b.
Qty. 6
Qty. 6
:
0.75" x 3.5" x 48" wood strips (not included).
c.
Qty. 6
Qty. 6
:
0.75" x 3.5" x 94.5" wood strips (not included).
d.
Qty. 4
Qty. 4
: 0.175" x 2" x 2" x 3.5" Steel Angle (not included).
e.
Qty. 16
Qty. 16
:
3/8" x 1-3/4" Bolt (not included).
f.
Qty. 8
Qty. 8
:
3/8" x 2-3/8" Bolt (not included).
g.
Qty. 48
Qty. 48
:
3/8" x 2-3/8" Bolt (not included).
h.
Qty. 72
Qty. 72
:
3/8" Spring Washer (not included).
i.
Qty. 112
Qty. 112
:
3/8" Flat Washer (not included).
j.
Qty. 72
Qty. 72
:
3/8" Nut (not included).
1.
Cut the Stakes, Front End Rails, Back End Rails, and Side rails to the sizes indicated
in Figure
L and drill 3/8" diameter mounting holes where shown.
3/8" DIAMETER
3/8" DIAMETER
2
1.6
1.6
0.75
0.75
0.75
0.75
3/8" DIAMETER
1.25
1.25
2
2
0.75
2
94.5
1.25
R2
18.5825
2
50.835
2
18.5825
3.5
3/8" DIAMETER
2
8
2
24
2
8
2
3.5
2
27
1.25
1.25
6
2
6.5
2
6.5
2
3.5
SIDE RAIL
SIDE RAIL
STAKE
FRONT END
FRONT END
BACK END RAIL
BACK END RAIL
CONNECTING PLATE
CONNECTING PLATE

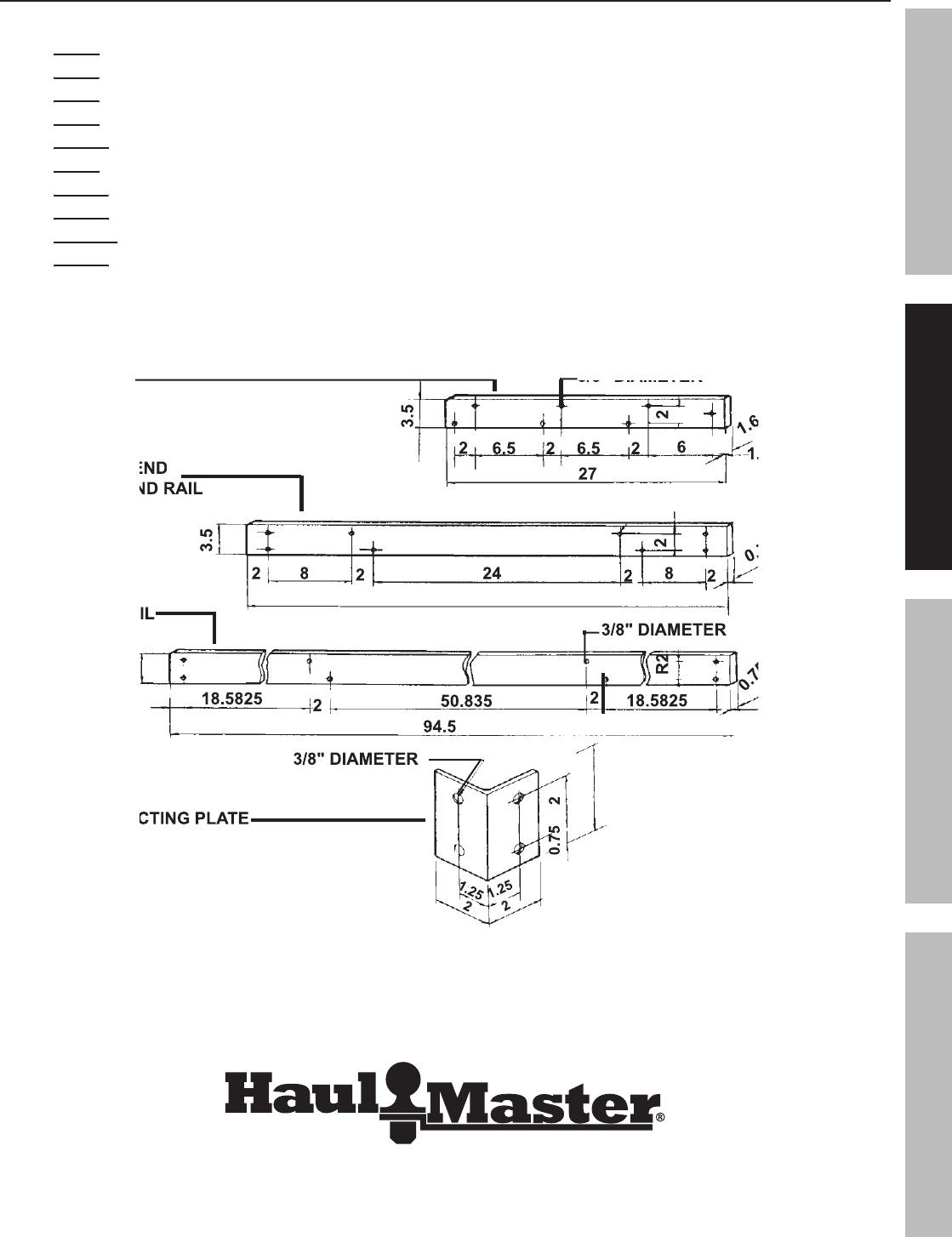

Figure
L:
Stake Dimensions and Hole Locations
