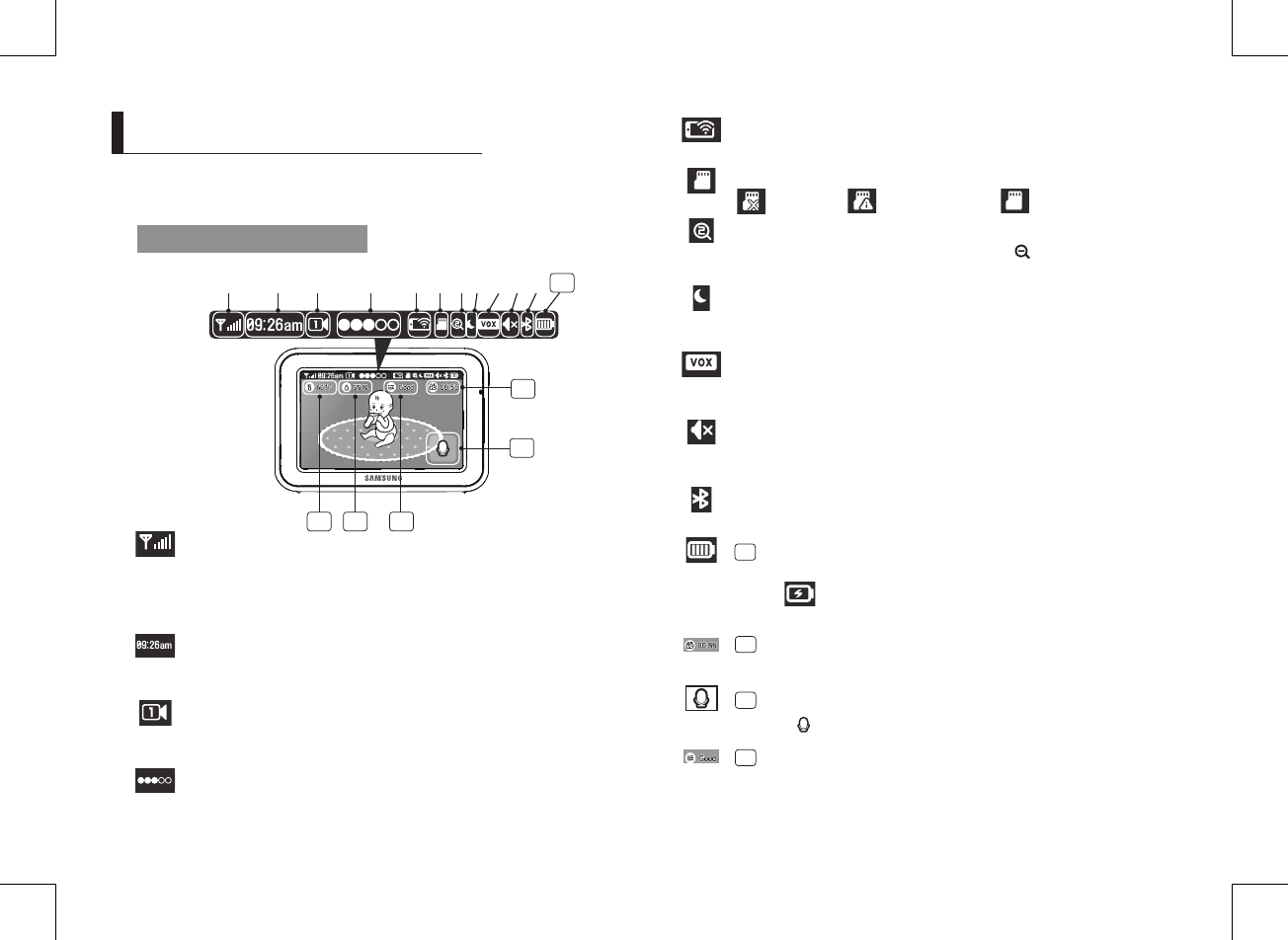

8 · Viewing Mode Display
Indicator Description
How to use the indicator
a b c d e fghij
a Signal Indicator
The signal indicator shows the strength of the signal being received from the
camera.
The number of bars in the signal indicator shows the strength of the signal –
One or no bars indicate the signal is poor, and 5 bars indicate a strong signal.
b Digital Clock
Displays the time that is set on the monitor. It only provides AM / PM time
format and no 24hour format.
c Camera Number
Indicates which camera is being displayed on the current screen. When scan mode
is selected, this icon will flash.
d Sound level Indicator
Indicate the sound level of the Active Camera.
e Remote View
Remote access with free Apps for smartphone.
f SD card status
No SD card Unsupport SD card SD card
g x1/x1.5/x2 Zoom mode
Indicates that current screen is Zoomed in. Press [ ] icon on the monitor to
zoom back out.
h Night Vision Indicator
Indicates camera night vision mode is turned on.
The screen will appear in Black/White in this mode.
i VOX On
Indicates remaining battery charge. Indicated in 4 levels, and one discharge
warning.
j Monitor Speaker Mute
Indicates the monitor speaker is muted. Once the monitor’s speaker is muted,
no sound from the camera is produced.
k Bluetooth
Indicated the Bluetooth turn on or off.
12
Battery Capacity Level
Indicates remaining battery charge. Indicated in 4 levels, and one discharge
warning.
Charging: Indicates the battery is charging by DC input power.
If battery nearly empty, it will flash to alert user to charge up the unit.
13
Feed time
A remind for Feed time counter.
14
Two-way talk
Press the [ ] icon while talking.
15
Air quality display
Indicates air quality display good or normal or bad according to the sensor.
k
12
14
13
151617
