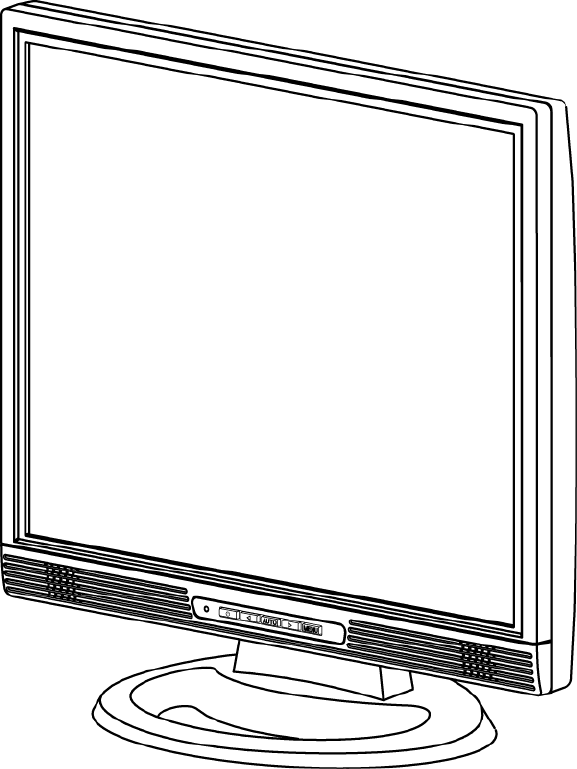

9 inch TFT LCD Monitor HX192 USER’S MANUAL
User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
User’s Manual Recycling Information We, the Hanns.G care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned substances.
User’s Manual TABLE OF CONTENTS SAFETY NOTICE ........................................................................................... 5 PRECAUTIONS ......................................................................................... 5 SPECIAL NOTES ON LCD MONITORS ................................................... 6 BEFORE YOU OPERATE THE MONITOR .................................................... 7 FEATURES ........................................................................................
User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. 3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.
User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn • • • • off the Power Switch and then turn it on again to make sure the flicker disappears. You may find slightly uneven brightness on the screen depending on the desktop pattern you use. The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.
User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES • • • • • • 19” TFT Color LCD Monitor Crisp, Clear Display for Windows Recommended Resolutions: 1280 X 1024 @60Hz EPA ENERGY STAR® Ergonomic Design Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: LCD Monitor Screen Base Cables and User manual Power Cord VGA Cable Audio Cable User’s manual Warranty card DVI-D Cable (dual input mode optional) 7
User’s Manual INSTALLATION INSTRUCTIONS Install Remove Figure.1. Installing and Removing the Base INSTALLATION: 1. Align the monitor with the opening in the base. 2. Note that the longer section of the base points forward. 3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly. 4. Verify that the monitor is securely attached to the base by looking at the bottom of the base and making sure that the clips are fully engaged in the base. REMOVAL: 1.
User’s Manual MAKING CONNECTIONS CONNECTING TO A PC: Turn off your computer before performing the procedure below. 1. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2. Connect one end of the 24-pin DVI-D cable (Dual input mode optional) to the back of the monitor and connect the other end to the computer’s DVI-D port. 3. Connect the audio cable between the monitor's audio input and the PC's audio output (green port). 4.
User’s Manual ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. • You are able to adjust the monitor’s angle from -5° to 20°. 20° -5° Figure.3. Monitor Angle NOTES: • Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. • The power cord should be connected. • Connect the Signal cable from the monitor to the VGA card. • Press the power button to turn on the monitor position. The power indicator will light up. Figure.4.
User’s Manual FRONT PANEL CONTROL • Power Button: Press this button to switch ON/OFF of monitor’s power. • Power Indicator: Green — Power On mode. Orange — Power Saving mode. • MENU / ENTER: 1. Activates the OSD menu or confirms adjustments to settings. 2. Exit OSD volume display when in volume OSD status. • Volume < >: 1. Activates the volume control when the OSD is OFF. 2. Navigate through adjustment icons when OSD is ON or adjust a function when function is activated.
User’s Manual HOW TO ADJUST A SETTING Main Menu FUNCTION Brightness Contrast Image Setting Color Setting OSD Setting Other Setting Input Setting Exit DESCRIPTION Select the「Brightness」option on the「Main Menu」. Enter the option and adjust the level. Select the「Contrast」option on the「Main Menu」. Enter the option and adjust the level. Select the「Image Setting」on the「Main Menu」, and then enter the option. Select the「Color Setting」option on the 「Main Menu」, and then enter the option.
User’s Manual Phase Adjustment Exit Select the「Phase Adjustment」option to reduce the horizontal flicker of characters on the screen. Enter the option and adjust the level. Exit the OSD menu function. Color Setting FUNCTION DESCRIPTION 5500K/6500K/ 9300K/PD Move the cursor to one of the preset options and select it. User Move the cursor to the User option and select it 1. To adjust the red, enter the「R」option and adjust the level. 2. To adjust the green, enter the「G」option and adjust the level. 3.
User’s Manual Language Exit Select the 「Language」 option to change the language of the OSD. Enter the option and select a language. (Reference only, the OSD Language is depended on selected model) Exit the OSD menu function. Other Setting FUNCTION DESCRIPTION Volume Select the「Volume」option to set the volume level from 0 to 100. Enter the option and adjust the level. Select the「Sharpness」option to adjust the sharpness of the display. Set the value from 0 to 6.
User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.
User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION Power LED is not on No Plug & Play Picture is fuzzy Picture bounces or a wave pattern is present in the picture The power LED is ON (orange) but there’s no video or no picture. Missing one of the primary colors (RED, GREEN, or BLUE) Screen image is not centered or sized properly.
User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.
User’s Manual APPENDIX SPECIFICATIONS LCD Panel Video Driving system Size TFT Color LCD 48.2cm(19.0") Pixel pitch 0.294mm(H) x 0.294mm(V) H-Frequency V-Frequency 31KHz – 80KHz 56 – 75Hz Display Colors 16.2M Colors Max. Resolution 1280 x 1024 @75Hz Plug & Play VESA DDC2BTM EPA ENERGY STAR® ON Mode ≤36W Power Saving Mode ≤2W OFF Mode ≤1W Input Connector Maximum Screen Size Power Source D-Sub 15pin DVI-D 24pin (Dual-Input Model) Hor. :376.32mm; Ver. :301.
