User Guide

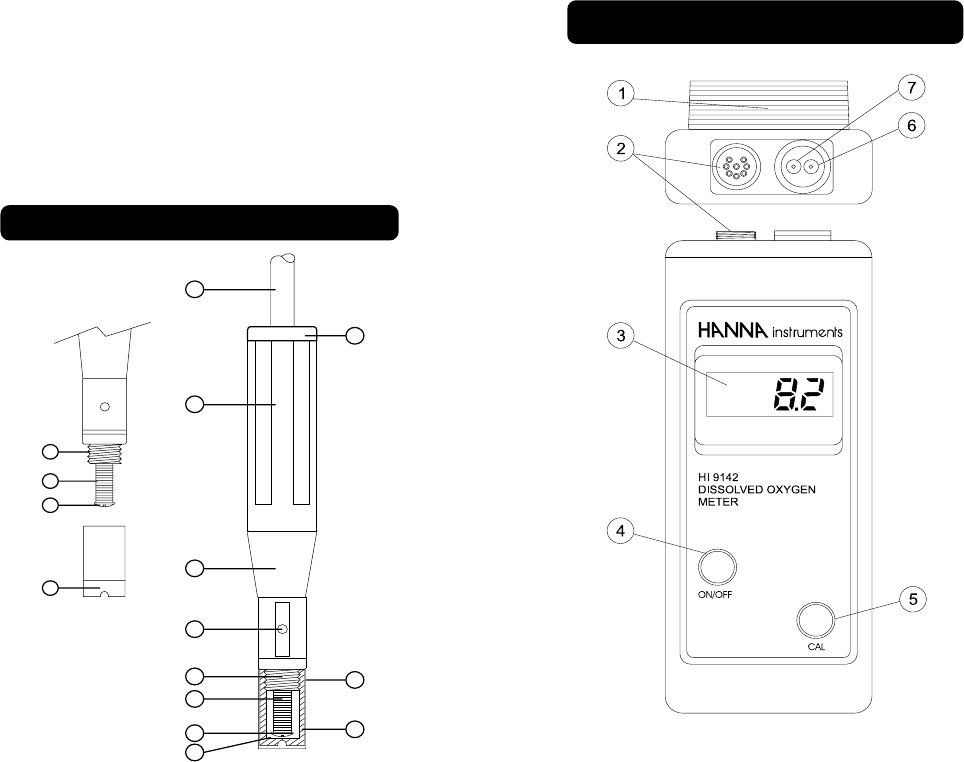

FUNCTIONAL DESCRIPTION
1. Battery Compartment
2. Probe Connector
3. Liquid Crystal Display
4. ON/OFF Button
5. Calibration Button
6. Slope Calibration Trimmer
7. Zero D.O. Calibration Trimmer
3
in thermistor for temperature measurements
and compensation. The thin permeable
membrane isolates the sensor elements from
the testing solution, but allows oxygen to enter.
When a voltage is applied across the sensor,
oxygen that has passed through the membrane
reacts causing current to flow, allowing the
determination of oxygen.
1. D.O. Probe
2. Protective Cap
3. Water-tight Shielded Cable
4. Polypropylene Probe Body
5. Temperature Sensor
6. O-Ring Seal
7. Silver Chloride Anode
8. Platinum Cathode (sensor)
9. Oxygen Permeable PTFE Membrane
10.Membrane Cap
FUNCTIONAL DESCRIPTION PROBE
9
1
3
4
4
5
6
7
8
9
2
10
8
7
6
2
